تفاصيل المنتج:
|
| نوع المنتج: | خط إخراج عصابات ربط الحيوانات الأليفة | تصميم المسمار: | متعدد |
|---|---|---|---|
| مادة خام: | أشرطة PET مبطنة بنسبة 100% أو رقائق قابلة للغسل | نوع المعالجة: | آلة البثق |
| لون: | بولي وأبيض أصفر أو حسب الطلب | نوع مدفوعة: | كهربائي |
| الجهد االكهربى: | 220 فولت-240 فولت | خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج |
| الاستخدام: | خط إنتاج أشرطة PET | طلب: | المشروبات والمواد الغذائية والسلع والآلات والأجهزة والكيميائية |
| ضمان: | 1 سنة | ||
| إبراز: | single screw PET strap machine,PET strap extrusion production line,PET strapping making machine |
||
Single Screw PET Packing Belt Making Machine Pet Strap Extrusion Production Line Make PET Strapping
Company profile
JIATUO Machinery has nearly 30 years of experiences in manufacturing strapping band machines. The PP/PET fully auto strapping band making machine features fully automatic screen changer or manual screen changer is available and two-step heating in quenching tank provides preheating function, ensuring high stretching ratio and stability. For more time-saving and high efficiency strapping band machine specification, please feel free to contact JIATUO!

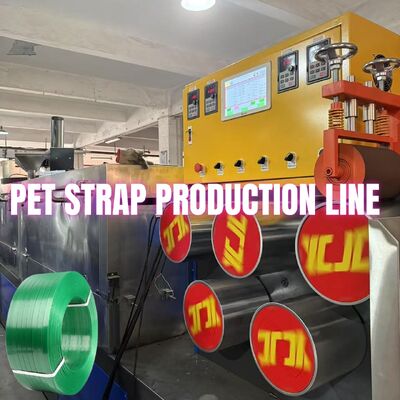

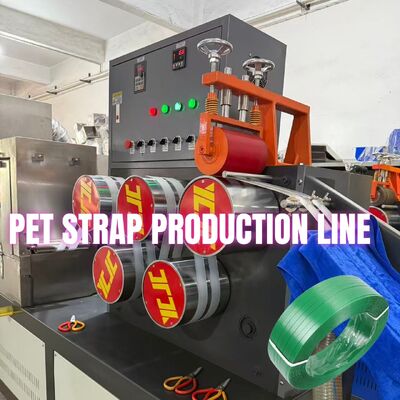

The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Technical parameter of PET 2straps output making machine
| 1 | Materials | PET CRUSHED MATETIAL / bottle flakes material /virgin material |
| 2 | Product | PET strap (1 mould for 2straps) |
| 3 | Capacity | 220-250kg/H |
| 4 | Total install power | 100kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 9mm-32 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (50m) ×W (4m) ×H (8m) |
| 9 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches | Fotek |
| 13 | Motor power | GUGAO |
Feature of PET belt making machine
1.PET strapping machine,using the 100% recycled pet bottle flakes as raw materials by making them melt directly,which reduces the course of raw material-making.
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
