تفاصيل المنتج:
|
| معالجة البلاستيك: | حيوان أليف | قطر المسمار (مم): | 110 ملم |
|---|---|---|---|
| القدرة الإنتاجية: | يمكن تخصيص 225-250 كجم / ساعة | ضمان: | 1 سنة |
| عدد الشريط مقذوف: | 3 | نطاق التطبيق: | الطوب والمعادن والصلب والألومنيوم ومصنع الجعة |
| مغير الشاشة: | اسطوانة مزدوجة / اسطوانة واحدة | نطاق سمك: | 0.4-1.2 ملم |
| نطاق العرض: | 9-32mm | المواد الخام القابلة للتطبيق: | مادة تقشر الزجاجة، 100% مادة مكسورة |
| إبراز: | single screw PET strap production line,PET packing belt making machine,high-speed 150m/min strap production line |
||

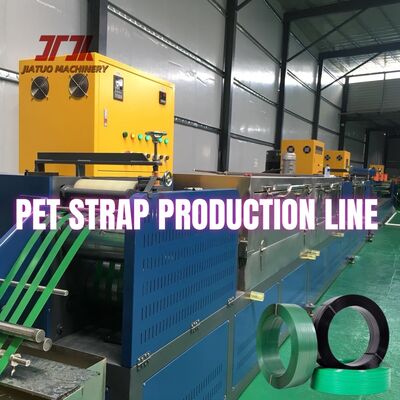

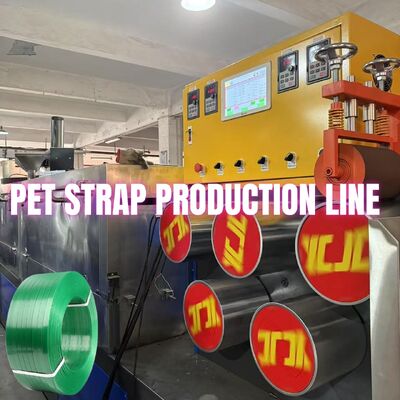

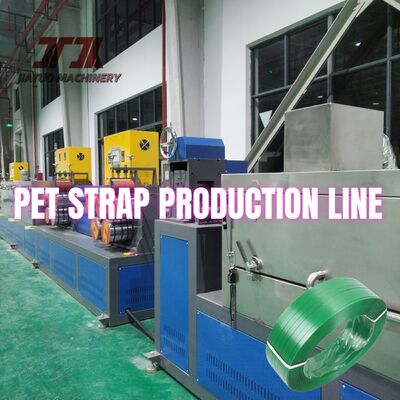

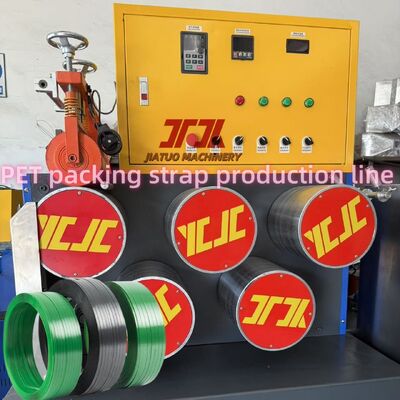

Single Screw PET Plastic Strap Production Line Making Packing Belt Strap With 150m/min Line Speed
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Tips: if you need printing, add the printer before embossing machine
Parameters of PET 2straps output production machine
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity | PETJT90:200kg/h |
| PETJT100:250kg/h | ||
| PETJT125:350kg/h | ||
| 4 | Product size | Width:9-32mm |
| Thickness:0.6-12mm | ||
| 5 | Installation power | PETJT90:200KW |
| PETJT100:250KW | ||
| PETJT125:300KW | ||
| 6 | Cooling tower capacity | 30T/H or 50T/H |
| 7 | Installation Dimensions | PETJT90:45*2.0*7.0M |
| PETJT100:45*2.0*7.0M | ||
| PETJT125:60*3.0*8.0M |
Application for plastic steel strapping
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
