تفاصيل المنتج:
|
| معالجة البلاستيك: | حيوان أليف | قطر المسمار (مم): | 110 ملم |
|---|---|---|---|
| القدرة الإنتاجية: | يمكن تخصيص 225-250 كجم / ساعة | ضمان: | 1 سنة |
| عدد الشريط مقذوف: | 3 | نطاق التطبيق: | الطوب والمعادن والصلب والألومنيوم ومصنع الجعة |
| مغير الشاشة: | اسطوانة مزدوجة / اسطوانة واحدة | نطاق سمك: | 0.4-1.2 ملم |
| نطاق العرض: | 9-32mm | المواد الخام القابلة للتطبيق: | مادة تقشر الزجاجة، 100% مادة مكسورة |
| إبراز: | single screw PET packing belt machine,PET plastic strap making machine,packing strap machine with warranty |
||

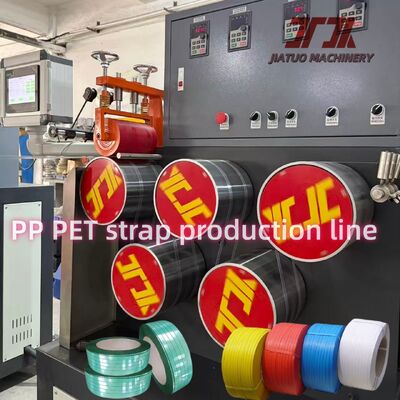

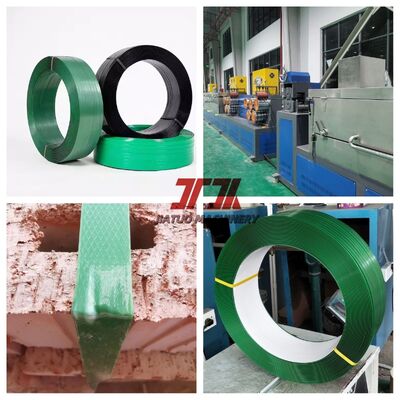

Single Screw PET Packing Belt Making Machine Make PET Plastic Strap For Packing
About PET strapping, how much you know?
PET (Polyethylene Terephthalate) strapping is a strong, flexible band made from the same material as plastic beverage bottles. It's used to bundle, unitize, and palletize goods for shipping and storage. It largely replaced steel strapping and is competing with polypropylene (PP) strapping in many applications.
What advantage of JIATUO PET strap making machine?
1. The entire production line is controlled by a PLC system, achieving uniform plasticization and stable extrusion.
2. The screen changer uses a chemical fiber filter with a filtration area of up to 4.5 square meters, allowing for 5-6 days without screen replacement, greatly improving production efficiency.
3. Output: 2/4/6/8/10 straps , customizable according to customer requirements.
Parameters of PET 2straps output production machine
|
1 |
Materials |
PET CRUSHED material / bottle flakes material /virgin material |
|
2 |
Product |
PET strap (1 mould for 2straps) |
|
3 |
Capacity |
220-250kg/H |
|
4 |
Total install power |
100kw, (actual power consumption is 40-50%) |
|
5 |
Strap width |
9mm-32 mm |
|
6 |
Thickness |
0.4 mm-1.2 mm |
|
7 |
Manpower |
2person/shift |
|
8 |
Workshop required |
L (50m) ×W (4m) ×H (8m) |
|
9 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
|
10 |
Electric components |
Schneider |
|
11 |
Inverter |
INVT |
|
12 |
Switches |
Fotek |
|
13 |
Motor power |
GUGAO |
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Tip: if you need printing on the strapping, setting printing machine before embossing.
FAQ about JIATUO PET strap making machine
For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
