تفاصيل المنتج:
|
| اسم: | آلة تصنيع أشرطة بي تي | عرض: | 9-32 مم |
|---|---|---|---|
| سماكة: | 0.6-1.2 ملم | مواد خام: | رقائق زجاجة الحيوانات الأليفة |
| مادة المسمار: | 38CrMoALA | أبعاد المسمار:: | 110*3300 ملم |
| سرعة الخط: | > 100-200 م/دقيقة | طريقة التحكم: | بلك |
| آلة التغليف: | أوتوماتيكي/شبه آلي | حاويات: | 40HQ * 3 قطع |
| إبراز: | single-screw PET strapping machine,PET strap making machine with warranty,PP PET strapping production line |
||
PET strapping machine single-screw PET strapping production line PP PET strapping machine
DESCRIPTION OF PET STRAPPING BAND MAKINGE MACHINE

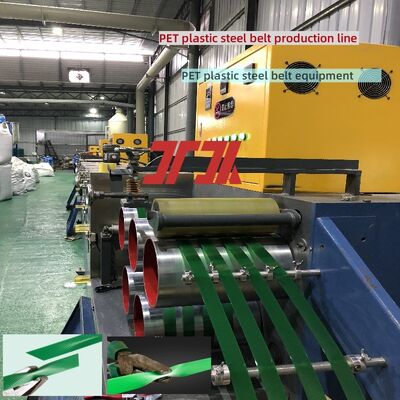

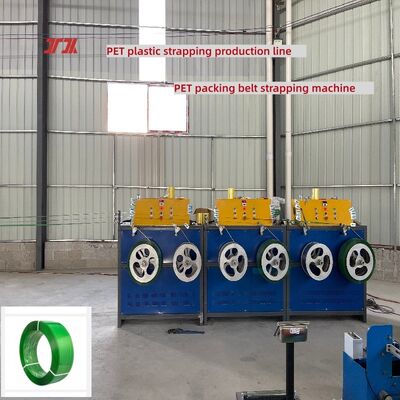

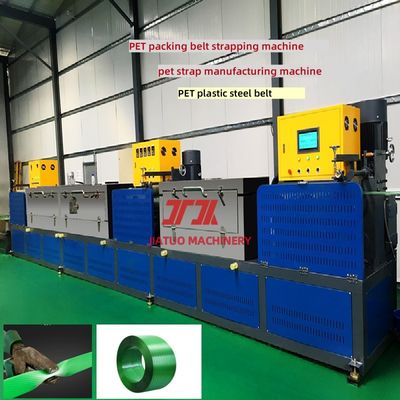

PET strapping band making machine
PET strap making machine/PET belt production line is an energy-saving and environmentally friendly plastic extruder that can produce PET belts with specifications of 9-32mm width and 0.6-1.2mm thickness.
MAIN FEATURES:
1. Screw------The PET strapping machine extruder uses a special PET screw with a unique parameter design. The screw has a unique separation and mixing effect, ensuring uniform plasticization of the raw materials. It boasts advantages such as high extrusion volume, excellent plasticization, high hardness, and high wear resistance.
2. Raw Materials------- The machine uses 100% PET bottle flakes or crushed PET strapping material. The finished PET plastic strapping is less prone to cracking, has a small error range, and is suitable for use with various types of strapping machines.
PRODUCT DESCRIPTION
| Model | PET-2 | PET-3 | PET-4 | PET-6 | PET-8 |
| Raw materials | Bottle flakes/crushed materials | ||||
| Number of tapes | 2 | 3 | 4 | 6 | 8 |
| Width (mm) | 9-32 | ||||
| Thickness (mm) | 0.4-1.2 | ||||
| Maximum line speed(m/min) | ≧150 | ≧150 | ≧150 | ≧150 | ≧150 |
| Screw Model | 90 | 100 | 125 | 150 | 180 |
| Reducer model | 200 | 250 | 280 | 315 | 350 |
| Dehumidifier | 1000 | 1000 | 2000 | 3000 | 3500 |
| Metering Pumps | 100CC | ||||
| Production capacity /24 H | 5-6T | 7-8T | 10-12T | 12-15T | 18-20T |
PET strapping production line process flow
① Loading →② Mixing raw materials →③ Pre-drying raw materials →④ Vacuum dehumidification of raw materials →⑤ Melting and metering extrusion of raw materials →⑥ Cooling and forming of raw materials (with raw materials) →⑦ Preheating the oven →⑧ Primary stretching →⑨ Secondary stretching →⑩ Embossing →⑪ Oven tempering and shaping →⑫ Cooling →⑬ Finished product winding

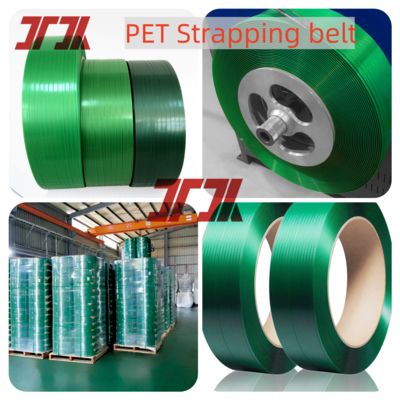

Application range of PET plastic steel belt:
1. Synthetic Fiber Filter Mesh------ Three-dimensional folded, extra-large surface area filtration device; the unfolded area of the filter mesh is 30 times larger than that of traditional flat filter meshes; the filtration fineness can reach 80 mesh. A unique mesh replacement device significantly reduces replacement time and improves work efficiency. The synthetic fiber filter mesh can be cleaned and reused, saving manufacturing costs and allowing for approximately 20 uses.
FAQ:
Q: What is the voltage of the PET strap making machine?
A: 380V/50HZ, three-phase (customization supported)
Q: What is the extrusion capacity of the PET strap making machine?
A: Different models have different extrusion capacities, with capacities ranging from 150-600KG/H
Q: What is the producible width of the PET strap making machine?
A: 9-32mm
Q: Can the PET strap making machine be customized?
A: Customization supported
Q: Where does the PET strap making machine come from?
A: China.
Q: What are the certifications for the PET strap making machine?
A: ISO CEO certification.
Q: What is the minimum order quantity for the PET strap making machine?
A: 1 set
Q: What is the weight of the PET strap making machine?
20T, 40GP container * 3PCS
