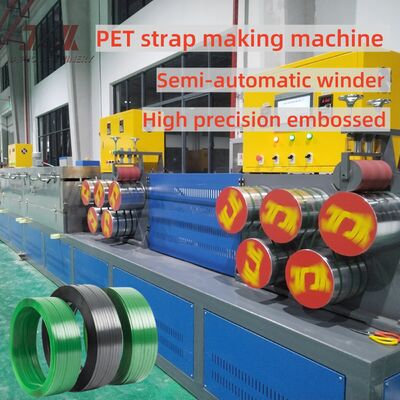

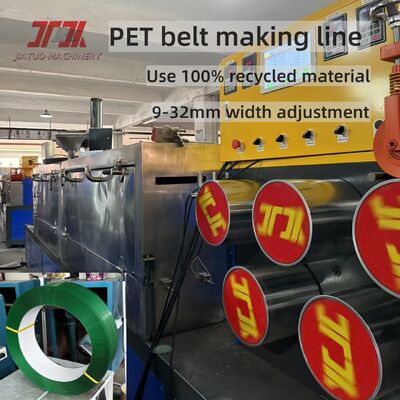

Single Unique Screw PET Strap Making Machinery With Energy-saving Closed-loop Oven System

Single Unique Screw PET Strap Making Machinery With Energy-saving Closed-loop Oven System

The process fiow of PET strap making machine as below

Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder

Parameters of PET 4straps output production machine

Feature of JIATUO PET strap making machine

Feature 1:

•     Raw material process and extrusion system.

•     High performance dehumidificater and drying system.

•     Production can use 100% recycled material to obtain a high add value strapping band.

Feature 2:

•    PLC Control , change parameter without production interrupted , not influence the production quality

Feature 3:

•    Special designed hot air stretching oven.

•    Configured with heating unit and automatic temperature control system.High performance heat insulating layer.

•    Better on strip stretching and heating, rapid heating, complete strip orientation stretching.

Feature 4:

•    Heating oven for sizing

•    Special designed technology, make sure the strip forming rapidly • Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.

Application for plastic steel strapping

As a new type of strapping product with strong tensile force and corrosion resistance, PET strapping belt is gradually replacing traditional stainless steel strapping products with overwhelming advantages in performance and price. Therefore, the potential of PET strapping production line as a small and medium-sized investment is huge.It is widely used in steel, aluminum, chemical fiber, cotton spinning, tobacco, paper, metal can making and other industries.

​

FAQ

1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.

2. Do you have quality certificate?
Yes we have CE, SGS etc.

3. What's the delivery time?
Around 40~50days, however, based on order.

4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment.
