تفاصيل المنتج:
|
| عرض: | 5-19 ملم | اسم المنتج: | ماكينة تصنيع حزام PP |
|---|---|---|---|
| ثينكسيس: | 0.4-1.2 ملم | التسامح في العرض: | ± 0.5 ملم |
| التسامح مع التفكير: | ± 0.05 ملم | سرعة الجري: | 250-300 م/دقيقة |
| دقة السرعة: | 0.01 ملم/دقيقة | نطاق السرعة: | 0-500 مم / دقيقة |
| إبراز: | fully automatic PP strap machine,PLC control strap making machine,automatic winder PP strap machine |
||

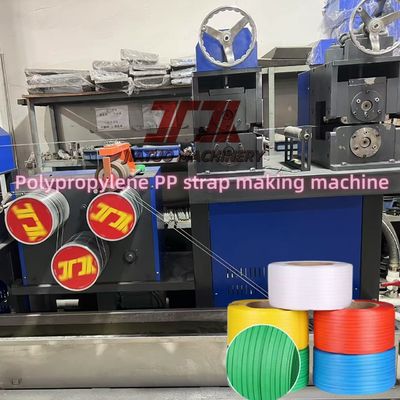

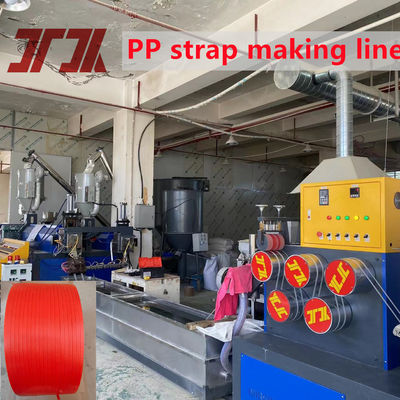

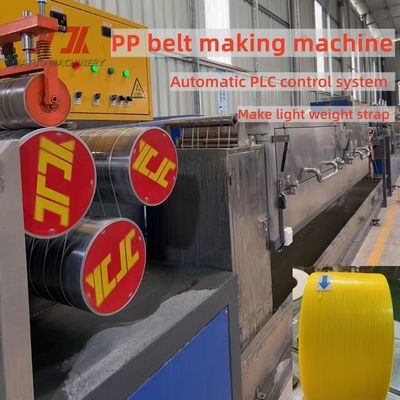

This production line is used for making full automatic PP strapping band and manual PP strap band for packing usge.
The width of the strap band is 5-19 mm, Thickness is from 0.4-1.2 mm.
Packing belt equipment adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production, extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable, the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.
Parameter of PP belt 4straps output making machine
| Parameter | Value |
|---|---|
| Product Name | PP Strap Band Extrusion Line |
| Total Power | 100KW |
| Production capacity | 230-260kg/h |
| Screw Material | 38CrMoALA |
| Screw diameter (mm) | 110mm |
| Take-up System | Automatic Take-up |
| Warranty | 1 Year |
| Control System | PLC |
| Strap Strength | 50-300kgf according to the size of strap |
| Video outgoing-inspection | Provided |
Feature of PP strap production line
(1)Special single/double screw extrusion technology.
(2) Process 100% recycled PET material or bottle flakes material
(3) Even plasticization and stable extrusion with PLC automatic control for the full line.
(4) Melt filter with two pistons with air venting design and back flushing.

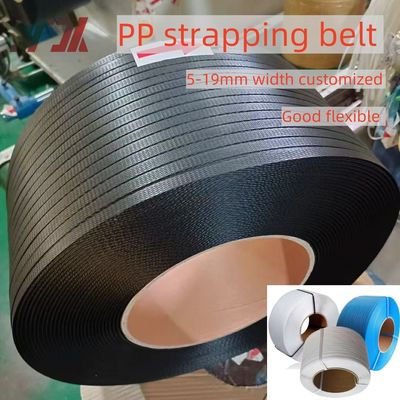

Application of PP strapping
Fastening automotive parts, machinery components, and appliances.
Stabilizing rolled products (paper, textiles, carpets).
Baling hay, straw, and agricultural produce.
Packaging bottled beverages, canned goods, and frozen food (food-grade PP strapping available).
Compressing recyclable materials (plastic, cardboard, scrap metal).
Binding waste for efficient disposal and recycling.
RFQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or trade assurance.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
