تفاصيل المنتج:
|
| نوع المنتج: | خط إخراج عصابات ربط الحيوانات الأليفة | تصميم المسمار: | متعدد |
|---|---|---|---|
| مادة خام: | أشرطة PET مبطنة بنسبة 100% أو رقائق قابلة للغسل | نوع المعالجة: | آلة البثق |
| لون: | بولي وأبيض أصفر أو حسب الطلب | نوع مدفوعة: | كهربائي |
| الجهد االكهربى: | 220 فولت-240 فولت | خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج |
| الاستخدام: | خط إنتاج أشرطة PET | طلب: | المشروبات والمواد الغذائية والسلع والآلات والأجهزة والكيميائية |
| ضمان: | 1 سنة | ||
| إبراز: | 260kg/H PET strap making machine,PET strap machine with PLC control,PET strap making machine with pre-drying barrel |
||

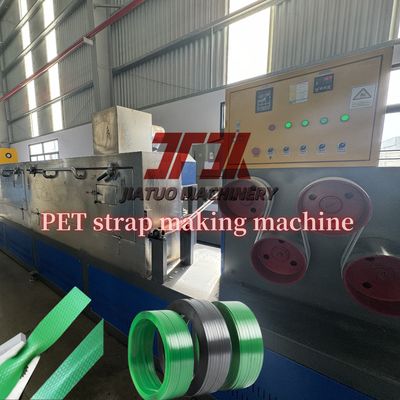

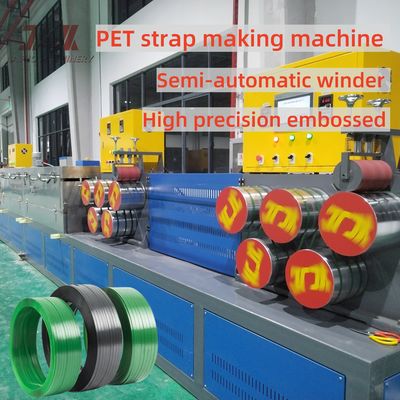

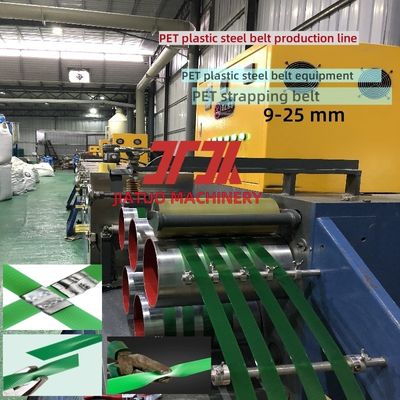

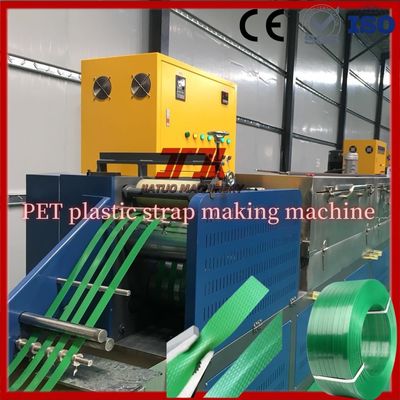

260kg/H PET strap making machine with 5000L pre-drying barrel and PLC control system
Company profile
JIATUO Machinery has more than 30 years of experiences in manufacturing strapping band machines. The PP/PET fully auto strapping band making machine features fully automatic screen changer or manual screen changer is available and two-step heating in quenching tank provides preheating function, ensuring high stretching ratio and stability. For more time-saving and high efficiency strapping band machine specification, please feel free to contact JIATUO!
| Machine size (L*W*H) mm | 5000*1500*7000 |
| Product arrange mode | PET One out two |
| Extrusion Capacity(kg/h) | 220-260kg/H |
| Speed (m/min) | more than 150 |
| Number of Straps | 2 |
| PLC control system | PLC |
| Outgoing band width(mm) | 9-32mm |
| Band Thickness(mm) | 0.4-1.2mm |
| Capacity per day | 6T |
Feature of PET strap production line
1. Extruder adopts PET special screw, unique parameter design, screw has a unique separation and mixing effect, to ensure the uniform plasticization of raw materials, with large extrusion capacity, good plasticization, high hardness, high wear resistance and other advantages
2. The net changer adopts chemical fiber professional filter, large area filter device, the expansion area of the filter is 30 times the size of the traditional flat filter, the filter mesh number can choose 80-150 mesh, the unique net changer device, reduce the time of changing the net and improve the work efficiency.
3. The rotary honeycomb dehumidification drying system is used to dry raw materials, and the dew point value can reach -50C, which is fully dried, and has a certain solid phase condensation and viscosity effect on raw materials.
4. The equipment adopts a special twice stretching process to make the finished packing belt rigid, stable width, and improve the tensile strength of the finished product.
5. The whole machine adopts high-precision machining parts, so that the product molding quality is stable, and the width and thickness errors are far less than the national standard.
Application of PET strap
PET packing strap, also known as PET plastic belt, is a world widely used new type package material substitute for steel belt. With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry. It is most widely used steel belt substitute with high strength.
Advantage of PET strap making machine
- Auto cycle for pre-heating, drying and loading
- Completely insulated oven with thermo regulated air
- Output range 80 to 380 kgs / hour
- Band width: 9 to 32 mm
- Precision strap band width +/- 0.3 mm
- High output with low power consumption
- Hydraulic screen changer for efficient operation
WHY CHOOSE US
1. We major in PP & PET Strap Production Line nearly 30years
2. Can use 100% recycled bottle flakes material
3. The final straps can be packed automatically
4. Always have at least 3 sets of sample machine in our workshop
5. Can take customers to see the running machines
6. Can test the machine for customers
