تفاصيل المنتج:
|
| لون الحزام: | مفرد/متعدد الألوان | سرعة الحزام: | > 250 م/دقيقة |
|---|---|---|---|
| قطر قلب الحزام: | 406*150 مللي متر/200*180 مللي متر | سمك حزام: | 0.4-1.2 ملم |
| التوتر الشريط: | قابل للتعديل | عرض حزام: | 5-19 ملم |
| مزود الطاقة: | 380 فولت/220 فولت | مرشح الصرف: | أوتوماتيكي بالكامل |
| حجم المسمار: | برغي مفرد ومزدوج | القدرة الإنتاجية: | 2.8T-12T/24 ساعة |
| إبراز: | 4 Nets PP Strapping Making Machine,Automatic Grade PP Strapping Making Machine,Non-Stop Pp Strapping Making Machine |
||

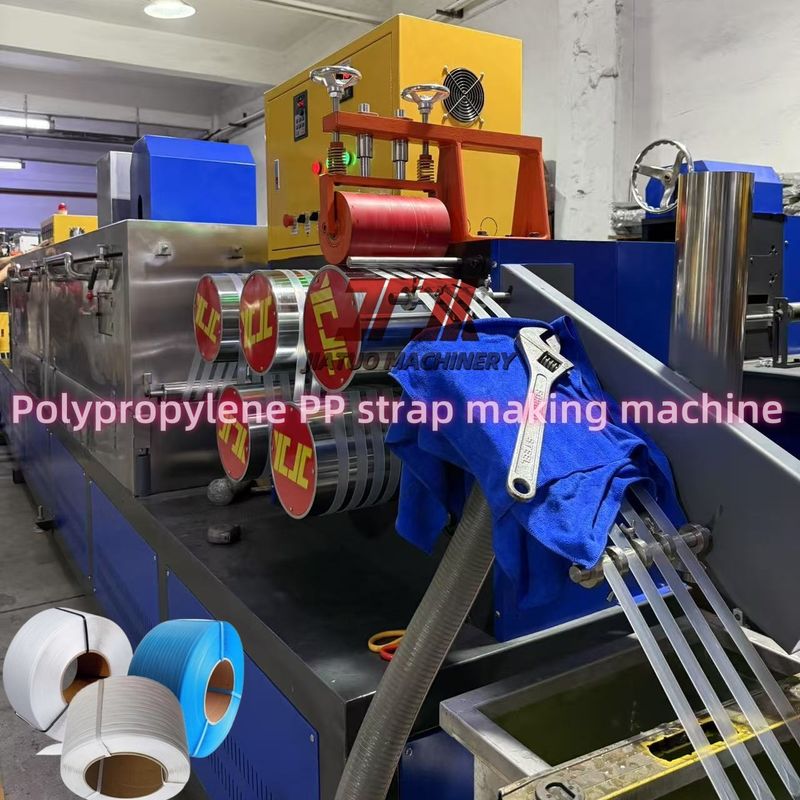

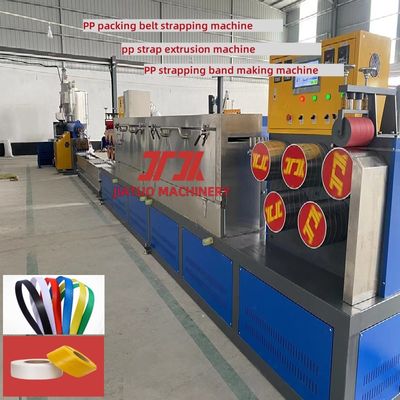

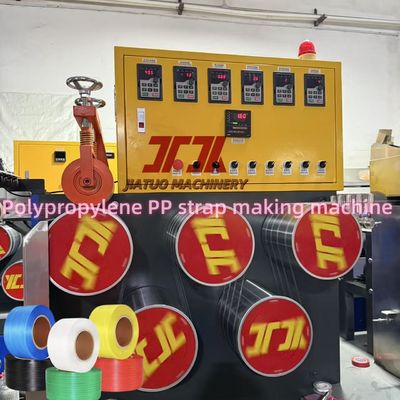

Automatic Grade Pp Strapping Making Machine With 4 Nets Non-Stop Screen Changer
This machine is main used to make pp packing strap.
Adopt the plc control the whole line for the auotmatic production.
precise die heard channel control ensure the production stable and strap quality control
The raw material can use is 100% recycled material from the waste bottles,or virgin material or mixed with each other.
Process flow of PP packing belt production line
① Feeding →② mixture material→③ pre-drying →④ melting and measuring extrusion →⑤ belt embryo cooling and forming →⑥ ovenpre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.
Specification of PP straps double output production machine
| Item | Product name | Detailed parameters |
| 1 | Materials | PP polypropylene new material/recycled material |
| 2 | Product | PP strap |
| 3 | Capacity | 120-150kg/h |
| 4 | Total install power | 80kw, (Operating power 50-55%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 1-2person/shift |
| 8 | Workshop required | L (28m) ×W (2m) ×H (4m) |
| 9 | Power source | 380V, 50Hz, 3Phase |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches+Thermostat | Taiwan Fotek |
| 13 | Motor power | Gugao |
| 14 | Solid state relay | Taiwan Fotek |
| 15 | Bearing | FSB |

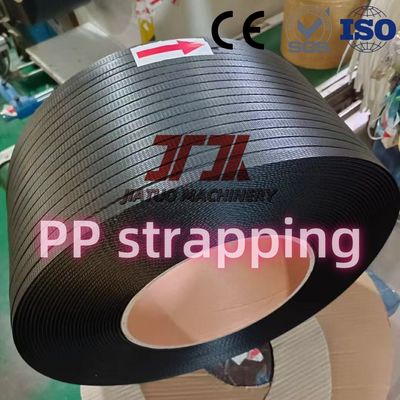

Application of PP strapping
1.Recycling Industry: PP strapping is used to compress and bundle recyclable materials like cardboard, paper, plastic bottles, and aluminum cans for efficient handling and transportation.
2. Logistics and Transportation: used to secure cargo in trucks, containers, and ships to prevent movement during transit.
3.Retail and Supermarkets: used to bundle products like water bottles, canned goods, and other retail items for display or transportation.
4. Furniture Industry: used to bundle furniture components like legs, frames, and cushions for storage or shipping.
FAQ
What about the payment way?
●TT,L/C at sight or trade assurance.
If you can extend the guarantee time?
●Yes.Our guarantee time is 12 months.
If you will send engineer coming to our factory to install and make training for worker?
●Yes,Every set of machine, we will send professional engineer to your factory and help installation and making training for you.
If you have CE,SGS,ISO certificate?
●Yes,except these,if you also need other certificates,we also can help to apply.
If we buy your machines, can you offer us wear-out spare pats?
●Yes,We provide our high quality machine 1 years’ guarantee,and we will also offer you 1 years wear-out spare parts for free .
Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems
from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers
will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
