تفاصيل المنتج:
|
| لون الحزام: | مفرد/متعدد الألوان | سرعة الحزام: | > 250 م/دقيقة |
|---|---|---|---|
| قطر قلب الحزام: | 406*150 مللي متر/200*180 مللي متر | سمك حزام: | 0.4-1.2 ملم |
| التوتر الشريط: | قابل للتعديل | عرض حزام: | 5-19 ملم |
| مزود الطاقة: | 380 فولت/220 فولت | مرشح الصرف: | أوتوماتيكي بالكامل |
| حجم المسمار: | برغي مفرد ومزدوج | القدرة الإنتاجية: | 2.8T-12T/24 ساعة |
| إبراز: | Precise Width PP Strapping Band Extruder,Plastic PP Strapping Band Extruder,230-260Kg/H PP Strapping Band Extruder |
||

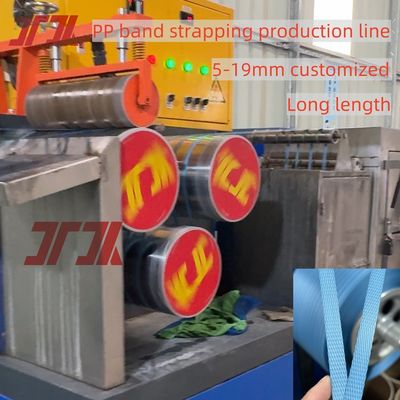

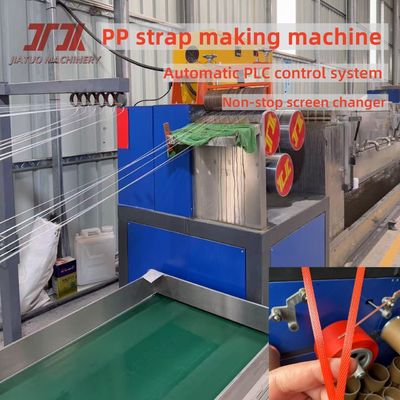

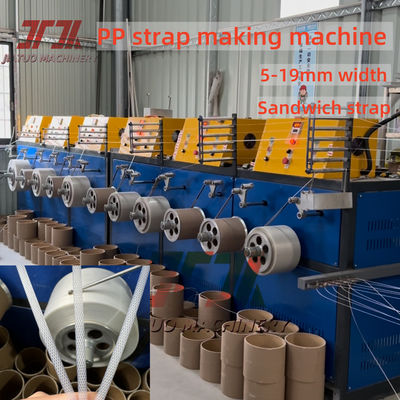

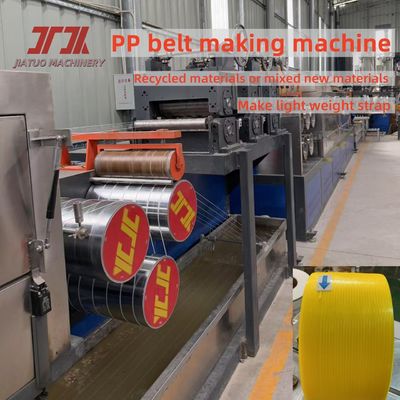

230-260Kg/H Capacity Plastic PP Strapping Band Extruder Production Machine With Precise Width And Thickness
Application of PP strapping
Recycling Industry
PP strapping compresses and bundles recyclables—cardboard, paper, plastic bottles, and aluminum cans—for efficient handling and transport.
Logistics & Transportation
Secures cargo in trucks, containers, and ships, preventing movement and ensuring safe transit.
Retail & Supermarkets
Bundles water bottles, canned goods, and retail products for display stability and easy transport.
Furniture Industry
Keeps furniture components (legs, frames, cushions) securely bundled for storage and shipping.
Process flow of PP packing belt production line
① Feeding →② mixture material→③ pre-drying →④ melting and measuring extrusion →⑤ belt embryo cooling and forming →⑥ oven pre-heating →⑦ primary stretching →⑧ secondary stretching →⑨ embossing → oven tempering and setting → cooling → finished product winding
Tips: if you have a choose of printing that you can printing first and then embossing in the project of eight.
Specification of PP straps 4output making machine
| Item | Product name | Detailed parameters |
| 1 | Materials | PP polypropylene new material/recycled material |
| 2 | Product | PP strap |
| 3 | Capacity | 230-260kg/h |
| 4 | Total install power | 80kw, (Operating power 50-55%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 1-2person/shift |
| 8 | Workshop required | L (35m) ×W (2m) ×H (4m) |
| 9 | Power source | 380V, 50Hz, 3Phase |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches+Thermostat | Taiwan Fotek |
| 13 | Motor power | Gugao |
| 14 | Solid state relay | Taiwan Fotek |
| 15 | Bearing | FSB |
How can we adjust the precise width and thickness?
1. We will equip to adjustment mould, it can making 8-19mm width and 0.4-1.2mm without changer mould.(for 5mm will equip fixed mould)
2. adjust speed of haul off five rolls wheels in PLC control to reach the size you need.
3. our running speed can be 220-300m/Min, the maximum speed is 300m/min. Maximum production capacity utilized
