تفاصيل المنتج:
|
| اسم: | خط بثق شريط الحزام Pp | مواد الإنتاج: | المواد المعاد تدويرها، المواد الخام |
|---|---|---|---|
| الاستخدام: | البضائع الخفيفة، التعبير، الكرتون... | الصف التلقائي: | تلقائي |
| حالة: | جديد | نوع مدفوعة: | كهرباء 100 كيلو وات |
| وظيفة: | مع عداد تلقائي، تعبئة، كفاءة عالية، تعبئة وطباعة، مع عداد تلقائي | خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج |
| إبراز: | 50-350kg PP Strap Making Machine,80kw PP Strap Making Machine,Good Flexible PP Strap Making Machine |
||

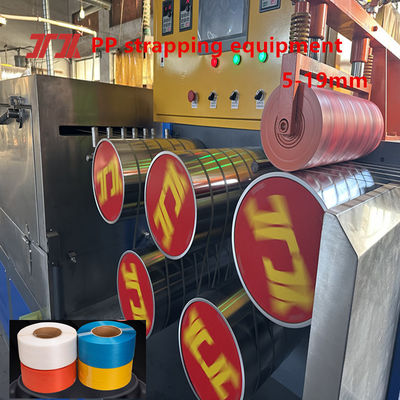

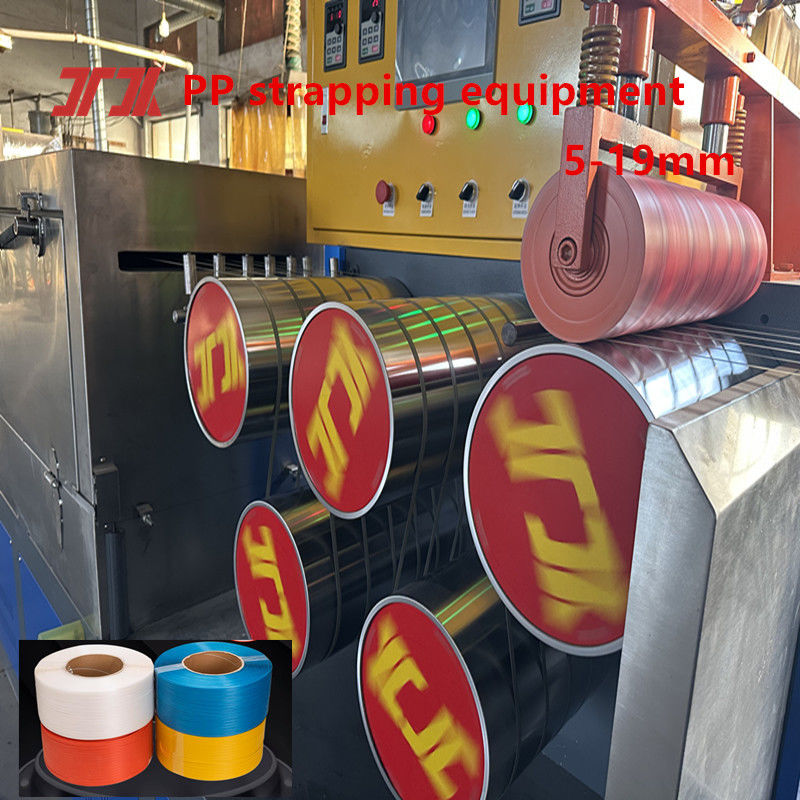

80kw Power PP Strap Making Machine With Good Flexible 50-350kg Tension Strength

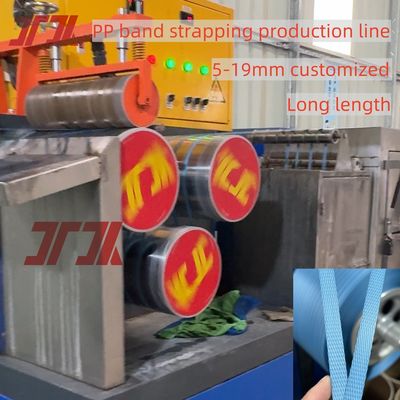

Process Flow of PP Packing Strap Production Line
①Material→②Stirring raw material→③Pre crystallization drying→④Extruding→⑤Cooling→⑥Oven preheating→⑦Primary stretching→⑧Secondary stretching→⑨Embossing→⑩Hot forming→⑪Cooling→⑫Winding(finished product)
PP Packing Strap Production Line Details
1. Extruder
--- PP strap making machine can be choose single screw and double screw
--- Special design screw structurer could extrude PP materials smooth, not create excessive shear molecular structure, and ensures the strength of the packing belt.
--- Automatic hydraulic screen changer, non-stop screen changing.
----Waater tank is mad of 304 stainless steel materials.
----The water is heated by water tank heating unit
3. Hual-off Rollers
----Gear transmission
----Chromed rollers

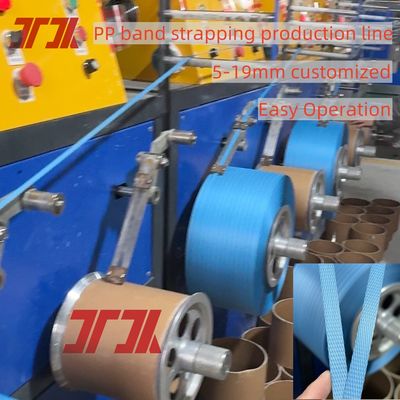

--- Winder could be designed into servo motor unit, inverter motor unit and torque motor according PET or PP materials and with customer's request.
Parameters of PP 1 to 2 production machine:
| 1 | Materials | Polypropylene PP raw material pellets, recycled pellets. |
| 2 | Product | PP strap (1 mould for 2 straps) |
| 3 | Capacity | 125-150kg/h |
| 4 | Total install power | 80kw, (actual power consumption is 40-50%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 2person/shift |
| 8 | Workshop required | L (28m) ×W (2m) ×H (4m) |
| 9 | Cooling water | ≤20℃,≥0.3Mpa, 5-8Ton/hr |
| 10 | Compressed air | 0.5-0.8Mpa |
| 11 | Power source | 380V, 50Hz, 3Phase (according to customer requirement) |
| 12 | Electric components | Schneider |
| 13 | Inverter | INVT |
| 14 | Switches | Fotek |
| 15 | Motor power | GUGAO |
| 16 | Machine frame |
100*100*2.5 mm(GB quadrate pipe) |
Applications of Final Products of PP Strap Band/Belt Extrusion Line/ PP Strap Band/Belt Extrusion Machine

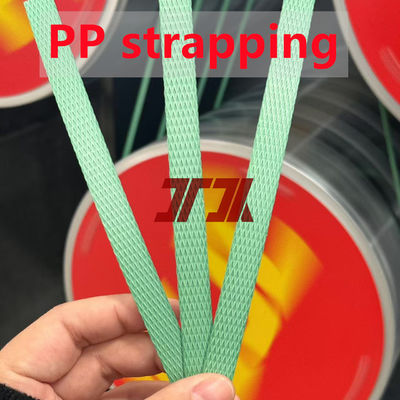

PP packing strap is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 20 years, we also have our own PET straps factory.
Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
