تفاصيل المنتج:
|
| سمك حزام: | 0.4-1.2 ملم | نموذج: | 100*2900 مللي متر |
|---|---|---|---|
| الجهد االكهربى: | 380 فولت/50 هرتز (حسب الطلب) | مادة خام: | مادة تقشر زجاجة PET، 100% مادة مكسورة |
| طريقة اللف: | دليل/تلقائي | إجمالي الطاقة: | 250 كيلو وات (الطاقة للتشغيل: 120-120 كيلو وات) |
| قوة: | 45 كيلو واط | عرض حزام: | 9-32mm |
| سعة: | 180-200kg/h | يحذب: | 350-850كجم |
| إبراز: | Single-Screw PET belt making Machine,Automatic PLC PET belt making Machine,Double Output PET belt making Machine |
||

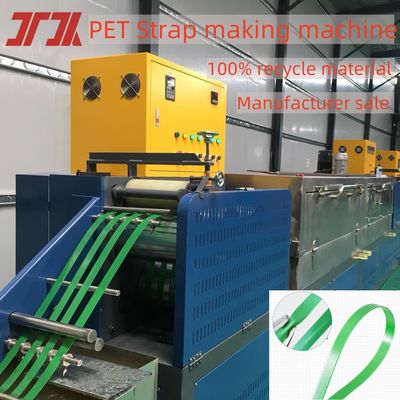

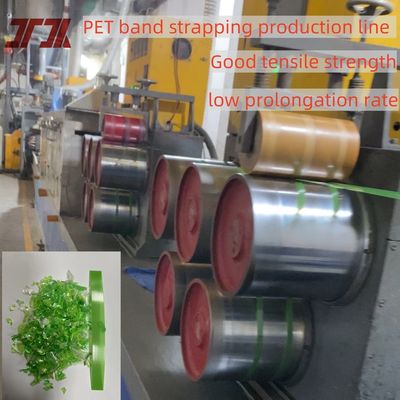

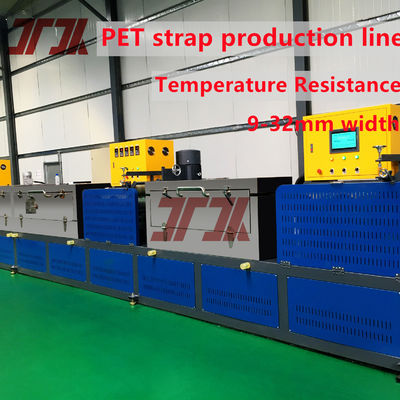

Technical parameters of PET belt 2output production line
| Raw material | PET granules or PET recycled material |
| Width of final product | 9-32mm |
| thickness of final product | 0.4-1.2mm |
| Max Capacity | 180-200kg/h |
| Manpower | 1-2 persons/shift |
| Machine Dimension | 55*2*8m |
| BRANDS | |
| Gearbox: | GUOMAO |
| Contactor: | GUGAO |
| Temperature controller | Fotek |
| Inverter | INVT |
Feature of PET Stapping making machine
1. Utilize 100% Recycled PET Flakes: Reduce production costs by using fully recycled PET flakes without compromising quality.
2. Advanced Dehumidifier Drying System: Ensures uniform drying of materials, guaranteeing high-quality strapping production.
3. Specially Designed Hot Forming Tensile Tank: Achieves precise forming, consistent width, and perfectly straight straps.

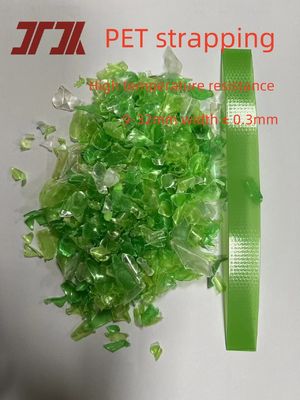

Advantage of PET strapping
1. Strong Tension: Offers exceptional tensile resistance, capable of withstanding 0.5 to 8.5 tons of tension, making it a reliable replacement for traditional steel straps.
2. Superior Shock Resistance: Its ductility and ability to recover after deformation allow it to absorb shock energy better than steel straps. It remains secure even when cargo contracts or expands.
3. Cost-Effective: Requires minimal packing tools, has low wear, and incurs minimal maintenance costs, making it an economical choice.
4. Enhanced Safety: Lightweight and soft, it eliminates the need for gloves during use. When cut, it does not snap back, reducing the risk of injury to workers and customers.
About the cost of PET strapping making by JIATUO machine
As a rule, it taks the pet pellet as the raw material for the usual line. But our line can use the 100% PET recycled as the raw material with our technology improvement. The cost calculate as follow:
Total cost= raw material(Prices are subject to fluctuation) + power fee + wage + generic wastage
| Material | Price (MT) | Price Difference | Saving Proportion |
| PET Pellet | USD 1090 | USD 280 | 25.70% |
| PET recycled | USD 810 |
FAQ
1. Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2. Do you have quality certificate?
Yes we have CE, SGS etc.
3. What's the delivery time?
Around 40~50days, however, based on order.
4. What is your overseas service?
We will provide high quality overseas service ,our technical staff will be able to provide you with technical support, for you personally to overseas assembly and test equipment
