تفاصيل المنتج:
|
| المنتج النهائي: | حزام التعبئة والتغليف PET | الجهد االكهربى: | 380 فولت/50 هرتز (حسب الطلب) |
|---|---|---|---|
| قوة: | 45 كيلو واط | اسم المنتج: | معدات إنتاج الحزام البلاستيكي الصلب PET |
| لون: | متطلبات العملاء | سعة: | 300-350 كجم/ساعة |
| رقم الحزام: | 2-8 حزام | ضمان: | 1 سنة |
| إبراز: | Automatic Winder PET Strapping Belt Extruder,PET Strapping Belt Extruder,Plastic PET Strapping Belt Extruder |
||
Plastic PET Polyester Strapping Belt Tape Band Extruder Making Machine with automatic winder

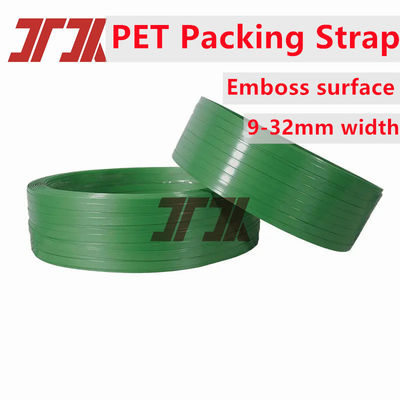

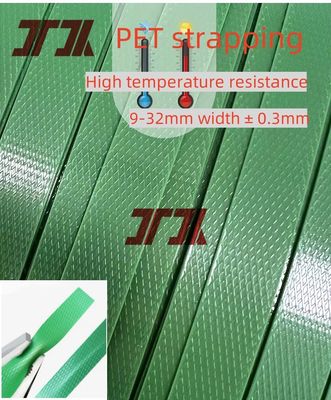

PET packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

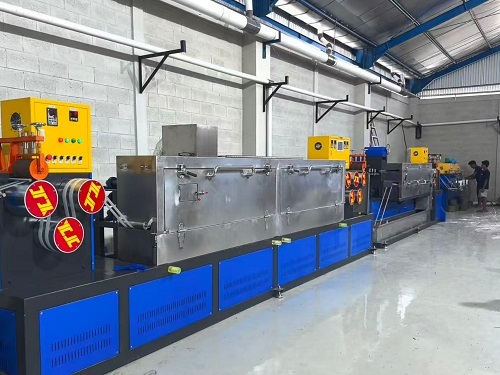

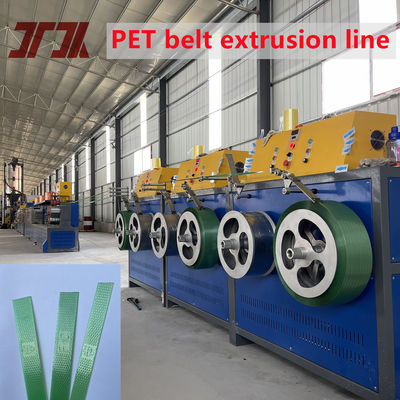

Technical parameter of PET belt 3output production line
| Screw model | 100 |
| Number of strap | 3straps |
| Width | 9-32mm |
| Thickness | 0.3-1.2mm |
| Screen changer | Automatic/Manual |
| Control system | PLC control(Chinese and English) |
| Production capacity | 300-350kg/H |
| Reducer Brand | GUOMAO |
| Motor Brand | Seimens |
| Equipment voltage | Three-phase 380v /50Hz |
| Tensile section | Two-stage stretching |

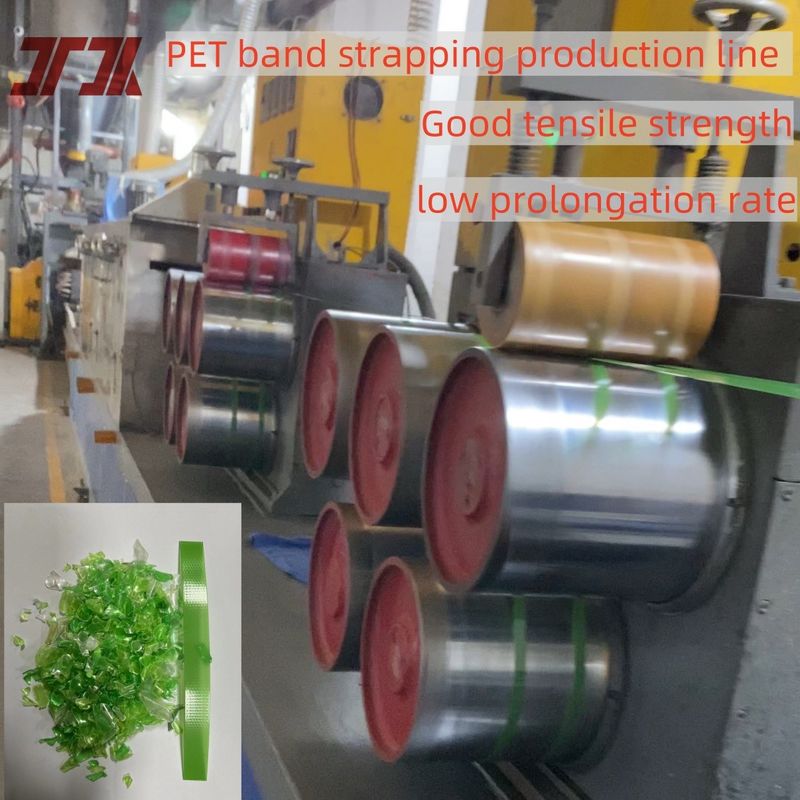

Advantages of PET strap production line
1. it can use the process 100% recycled/PET bottle flakes.
2. even plasticization and stable extrusio with PLC automatic control for the whole line.
3. as per different requirements, changing a coating materials for making strao has better and special function.
For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
4. Non-stop filter changer. filter changer with 7 filters, Filter area up to 2.5m2
5. Production line just need 2-3 workers ,24 hours moving per day is better to saving energy cost.
FAQ
Q:Are you machinery factory or trading company?
A:We are machinery factory
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers
Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
