PLC Control System PP Packing Strap Extruder Production Line With No-Stop Changer Running Speed 300m/Min

PLC Control System PP Packing Strap Extruder Production Line With No-Stop Changer Running Speed 300m/Min​

Specification of PP strap double output making machine

​

Product Name	PP Strap Band Extrusion Line
Material	PP Polypropylene New Material/recycled Material
Strap Strength	350-650kg
Production Capacity	125-150kg/h
Winding Method	Manual/automatic
Video Outgoing-Inspection	YES
Equipment Layout Diagram	Customized
Equipment Voltage	Three-phase 380v /50Hz ( Customized )
Warranty	1 Year
Screw Material	38CrMoALA

​

Feature of PP strap production line
1. Capacity: 125-150kg/H
2. It can process multi-materials like new PP material, recycled PP material, CACO3 etc.
3. Automatic temperature controller in whole line, frequency inverter technology;
4. The screw and barrel's design adopts gradual-change type and latest reduction ratio in order to enhance plasticization and stable output;
5. Overseas service, installation, staff trainning and technical support.

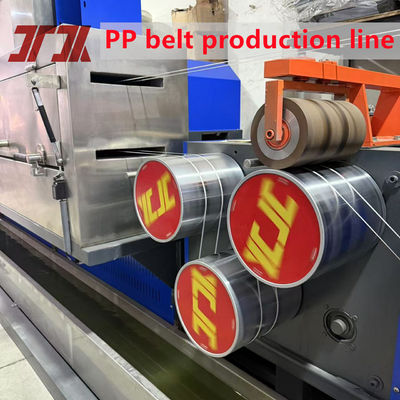

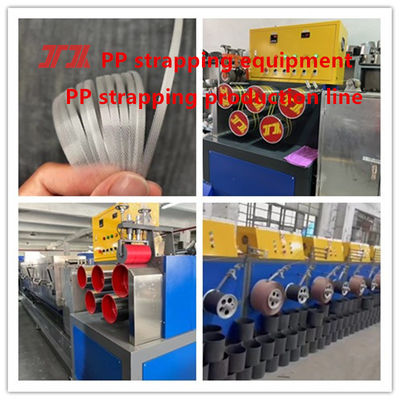

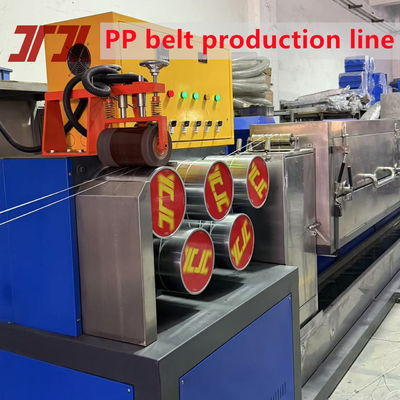

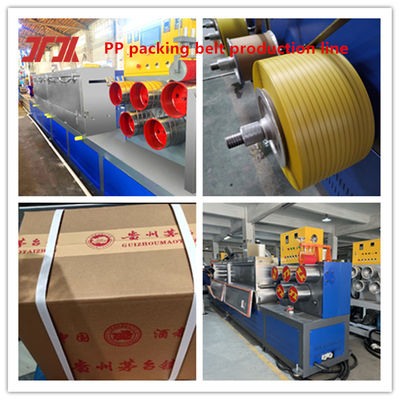

The extrusion Line consist of the following parts
Screw extruder--Die head and mould(two strips)---Cooling water tank---First haul-off---Thermal oven---Second haul-off---Embosser---calibrating---haul off--winder



FAQ:


Q:What is the Brand Name of this product?

A:The Brand Name of this product is JIATUO CHINA.

Q:What is the Model Number of this product?

A:The Model Number of this product is JTPP, we have 2/3/4/6/8 strap output in the same time for you choose

Q:Where is the place of origin of this product?

A:The place of origin of this product is CHINA SHENZHEN, welcome to visiting our factory.

Q:What is the Certification of this product?

A:The Certification of this product is IS CEO. we can also provide the more certifications what you need, and we were apply for many patents in China
