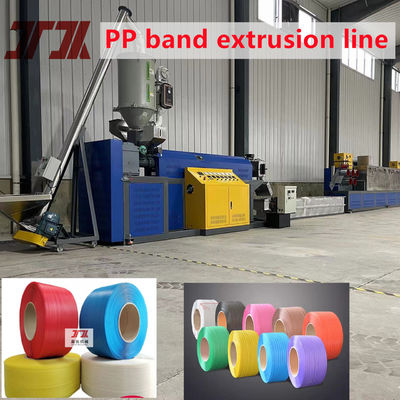

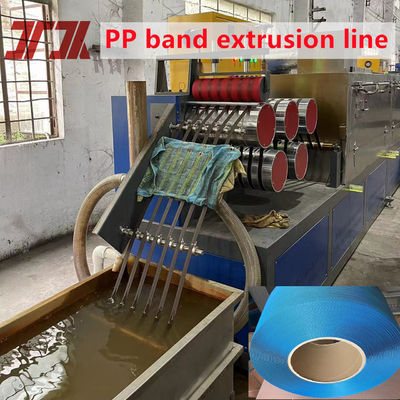

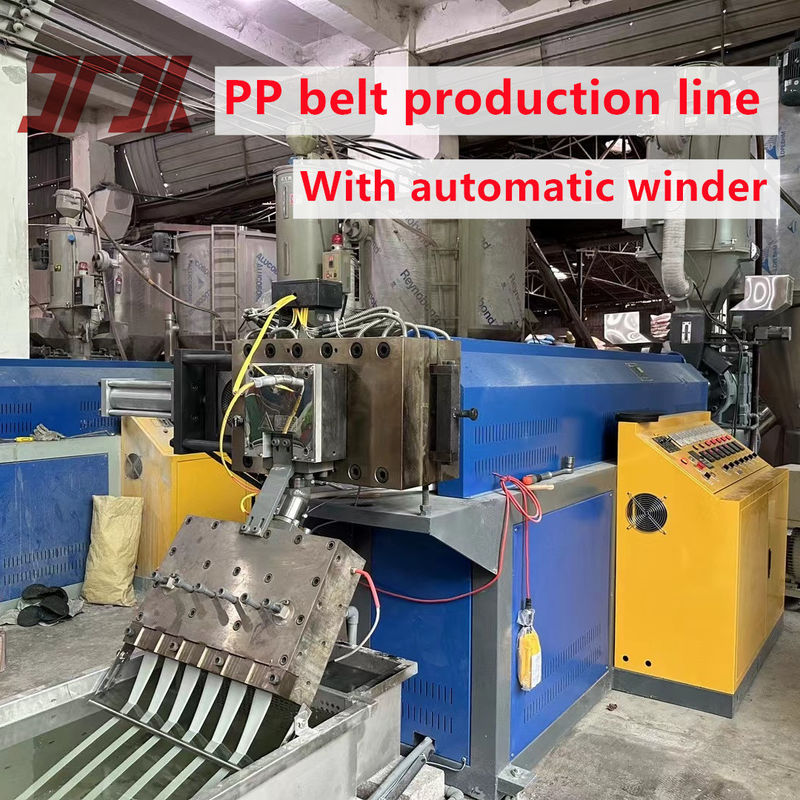

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine
Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine
Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine

صورة كبيرة :  Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: PP strap making machine
إصدار الشهادات: IS CEO
رقم الموديل: جي تي بي بي-90
وثيقة: PP strap production line-A.pdf
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 مجموعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: فيلم بلاستيكي
وقت التسليم: 30-40 أيام
شروط الدفع: خطاب الاعتماد، د/أ، د/ف، تي/تي
اتصل

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine

وصف
فيديو التفتيش الصادر: متاح التوتر الشريط: قابل للتعديل
نظام التحكم: نظام التحكم PLC محرك: 37 كيلو واط (جوغاو)
نقاط البيع الرئيسية: التكنولوجيا المتقدمة الألمانية واليابانية الرائدة اللفاف: عجلة محطة مزدوجة
نوع الحزام الأساسي: ورق / بلاستيك ضمان: 1 سنة
عرض: 5-19 ملم سماكة: 0.4-1.2 ملم
إبراز:

Double Station Winder pp strap extruder

,

Adjustable Tension PP Strap Extrusion Line

,

Adjustable Tension pp strap extruder

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine


Technical Parameters of PP strap making machine


ModelPP-2PP-3PP-4PP-6
Production materialPP new raw materialsPP new raw materialsPP new raw materialsPP new raw materials
Number of strips produced2346
Output bandwidth (mm)5-19mm5-19mm5-19mm5-19mm
Tape thickness (mm)0.4-1.20.4-1.20.4-1.20.4-1.2
Extrusion volume (kg/h)100-125kg/H180-220kg/H250-290kg/H350-375kg/H
Maximum linear speed(m/min)≥260≥260≥260≥260
PLC control systemPLCPLCPLCPLC
Screw model90100110125


The flow process of making PP strapping


Feeding material→ material barrel heating → into screw hearting → screen mesh filter material → mould output strap → traction the strap → stretching → embossing → printing →setting oven make the strap more straightness → winding final product


Tips: if you dont need printing the information on strap, then leave the printing step.


Feature of JIATUO PP strap making machine

  1. Large-capacity material barrel reduces frequent feeding and improves production efficiency.
  2. Non-stop screen changer allows filter mesh replacement without shutting down the machine, greatly enhancing production efficiency.
  3. The finished strapping features small width and thickness tolerances: width tolerance ±0.3mm, thickness tolerance ±0.03mm.
  4. Equipped with a torque double-station winder for easier operation and faster roll changing.

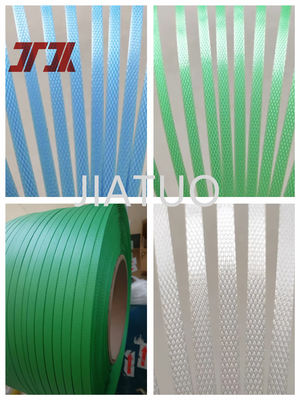

Application of PP strapping


  1. logistics & warehousing industry
  2. e-commerce packaging
  3. food & beverage packaging (secondary packaging)
  4. construction material packaging
  5. paper & printing industry
  6. textile & fiber packaging

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine 0

Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine 1


FAQ


4. What is the tolerance of finished strapping band?


  • Width tolerance: ±0.3 mm
  • Thickness tolerance: ±0.03 mm
  • Stable and uniform size ensures smooth use on automatic strapping machines.

5. Can the line run continuously for a long time?


Yes. It is equipped with a non-stop screen changer and large-capacity hopper to reduce downtime, supporting long-hour stable production.

6. How many workers are needed to operate one line?


Normally 1–2 workers are enough. The line adopts PLC control system, easy to operate and maintain.

7. Can we adjust the size of strapping band?


Yes. By changing molds and adjusting process parameters, you can produce common specifications such as 5–19 mm width and different thicknesses.
Adjustable Tension PP Strap Extrusion Line With Double Station Winding machine 2
