تفاصيل المنتج:
|
| نوع المنتج: | آلة تصنيع أشرطة بي تي | مادة خام: | رقائق PET أو مواد معاد تدويرها بنسبة 100% |
|---|---|---|---|
| عرض حزام الحيوانات الأليفة: | 9-32mm | سعة: | 300-350 كجم/ساعة |
| نطاق سمك PET: | 0.6-12 ملم | نوع مدفوعة: | كهربائي |
| الجهد االكهربى: | وفقا لمصنع العميل | لون المنتج: | أخضر/وردي/أصفر/أسود |
| محرك: | جوغاو | خدمة ما بعد البيع المقدمة: | الدعم الفني للفيديو، الدعم عبر الإنترنت |
| طلب: | المواد المعبأة | ضمان: | 1 سنة |
| PLC computer control machine: | YES | عملية بسيطة: | نعم |
| عملية مستقرة: | نعم | ||
| إبراز: | 12mm PET Strapping Extrusion Line,0.6-12mm PET Strapping Extrusion Line,PET Plastic Strap Packing Machine |
||
PET Strapping Extrusion Line PET Machine Plastic Strap Packing Machine
Quick Detail Of PP Strap Making Machine
Name: PET 1 to 6 strapping production line
Applicable raw materials: PET raw material or 100% PET bottle flakes recycled
Number of screws: 1 Screw
Number of extruded belts: 1, 2, 4, 6
Width range: 9-32mm
Thickness range: 0.6-12mm
Production capacity: 200kg/h 250kg/h 350kg/h
Installation size: 35m*(3~6)m*(4~6)m or 45m*(3~6)m*(4~6)m
Specification Of PET Strap Production Line
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity |
PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |

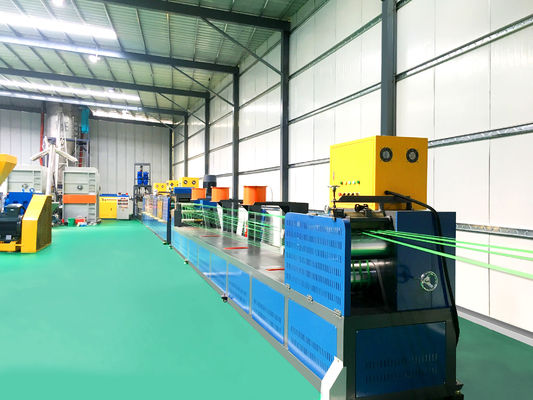

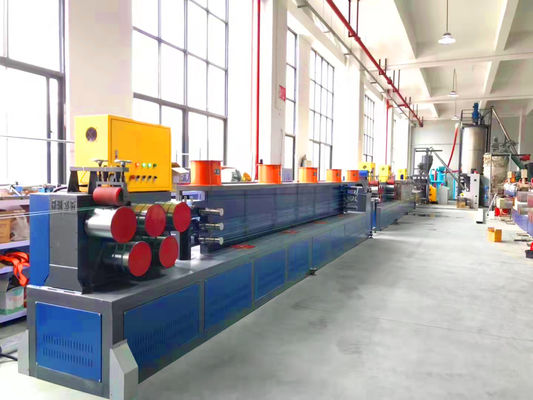

Overall picture of PET Strapping Machine
![]()
More information about PET strapping extrusion production line
PET strap making machines with 1, 2 or 4 straps extruded are available. final straps from 100% PET bottle flakes exhibit high tensile strength, the resistance to splitting.
With over 10 years experience in transforming recycled raw materials into a consistent quality PET strap by supplying manufacturing facilities for extruding, stretching, stabilizing and collecting processes.
the straps have excellent characteristics such as dimensional stability (width & thickness), weight, camber, breaking loads, elongations under load, weldability and service life. High performance PET straps produced on our PET strap machinery are replacing steel straps at significant savings.
![]()
Features of PET packing strap production line:
![]()
