تفاصيل المنتج:
|
| معالجة البلاستيك: | ص | قطر المسمار (مم): | 110 ملم |
|---|---|---|---|
| production capacity: | 200-250kgs/H | ضمان: | 1 سنة |
| Number of extruded strap: | 4 | Application Scope: | some light cargoes (>240kgs) |
| screen changer: | Automatic/handle | نطاق سمك: | 0.4-1.2 ملم |
| نطاق العرض: | 5-19 ملم | المواد الخام القابلة للتطبيق: | مادة معاد تدويرها بنسبة 100% |
| Melting point: | 260 temperature | الكلمات الرئيسية: | ماكينة صنع الحزام |
| نقاط البيع الرئيسية: | إنتاجية عالية | Winding: | Fully automatic/ semi automatic |
| Inverter: | IVNT | محرك: | جوغاو |
| اللفاف: | 3 مجموعة | Worn parts: | Provide some for free |
| الطارد: | بثق المسمار | مغير الشاشة: | آلي / يدوي |
| إبراز: | 250 kgs/H PP Strap Band Extrusion Machine,Single Screw PP Strap Extrusion Machine,Automatic Feeding PP Strap Extrusion Machine |
||
Unique Recycle Cooling Process PP Strap Band Extrusion Machine Automatic Feeding System
Description

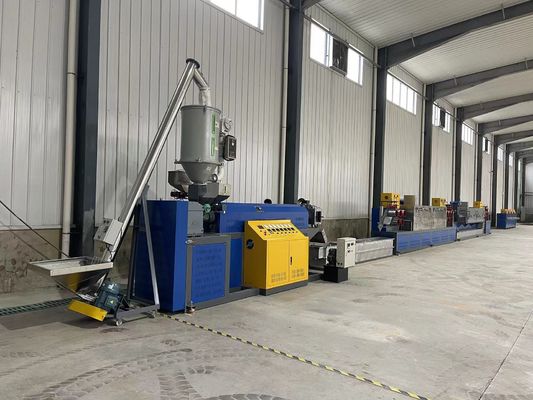

PP strap band production machine:
This production line is used for making full automatic PP strapping band and manual PP strap band for packing use. The width of the strap band is 5-19 mm, thickness is from 0.4-1.2 mm.

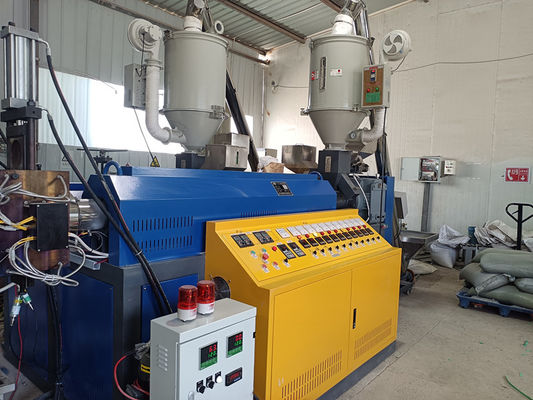

Packing belt equipment adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production, extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable, the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.
Compositions

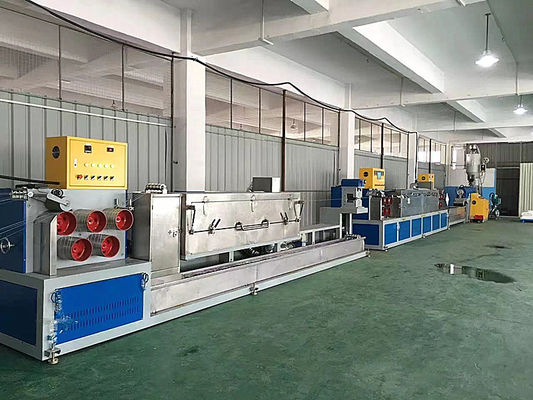

PP belt production line:
| 1 | Vacuum feeder | 1 set |
| 2 | Hopper dryer | 1 set |
| 3 | Feeding machine | 2 set |
| 4 | ¢110 Extruding Machine | 1 set |
| 5 | Automatic Screen filter changer | 1 set |
| 6 | Mould(1 mould for 4 output) | 1 set |
| 7 | Water cooling tank system | 1 set |
| 8 | The first haul-off device | 1 set |
| 9 | Stretching oven | 1 set |
| 10 | The second haul-off device | 1 set |
| 11 | PLC electrical control system | 1 set |
| 12 | Embossing machine | 1 set |
| 13 | Forming oven | 1 set |
| 14 | Cooling system | 1 set |
| 15 | The third haul-off device | 1 set |

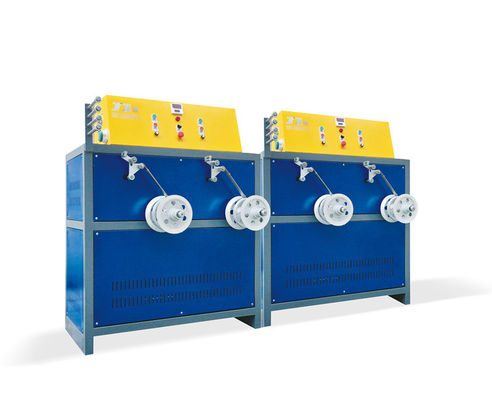

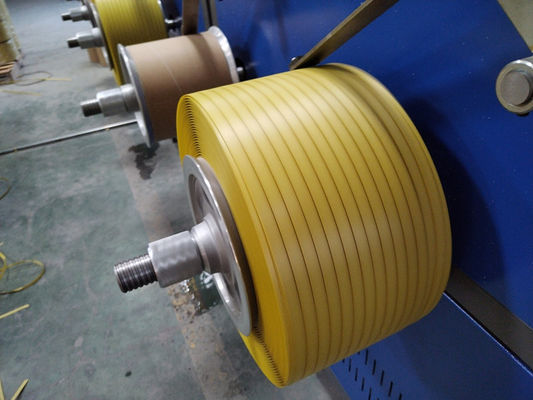

| 16 | Double disk winder | 4 set |
Features
PP strap band production machine:
Application
PP packing straps making machine:
Materials: PP material, or 100% recycling pp flakes and granules.
This machine can be used to meet the needs of cartons, tobacco, clothing, paper, electronics, wooden boxes, fruit, electrical (such as refrigerators, washing machines, color TV), food and other industries.Based on the reinforced strapping band unit, is specially used for the top-grade light weight products with good quality, light gram weight and well rigidity. Its high-speed low-temperature stretching technology and optimized structure may reduce energy consumption to the maximum extent, simplify operating procedure and realize digital displayed accurate control. The unit has advantages of energy saving, great extrusion pressure, optimal embossing effect, high output, good formation, convenient maintenance, simple operation, safety and reliability. The single-band unit is an ideal device that is used to manufacture top-grade light weight strapping band. This unit is applicable to PP fresh material and used for producing light weight strapping band.

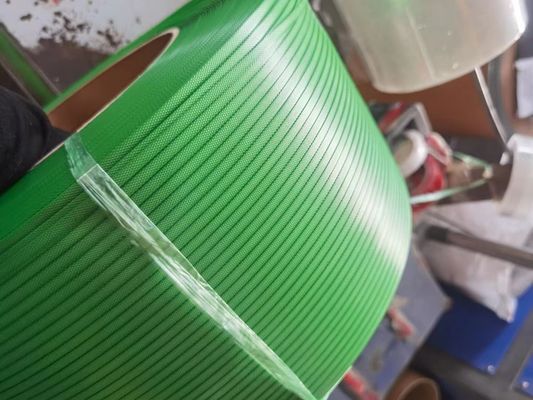

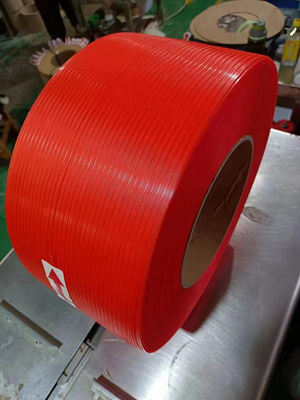

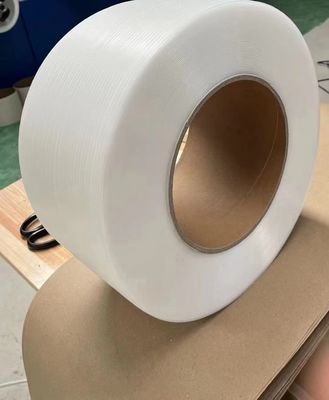

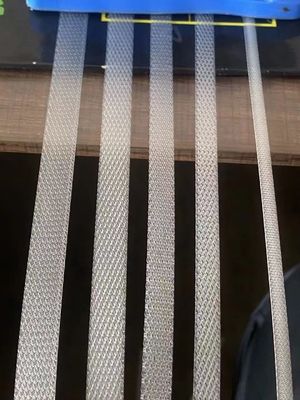

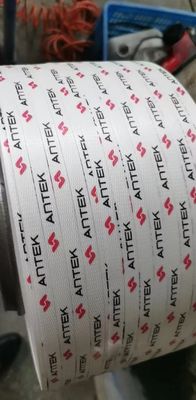

Final product picture
PP straps extrusion machine:

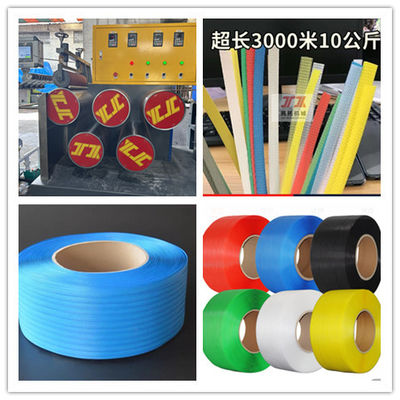

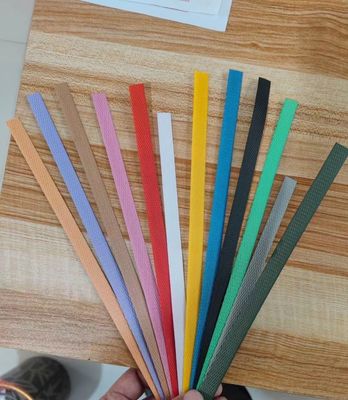

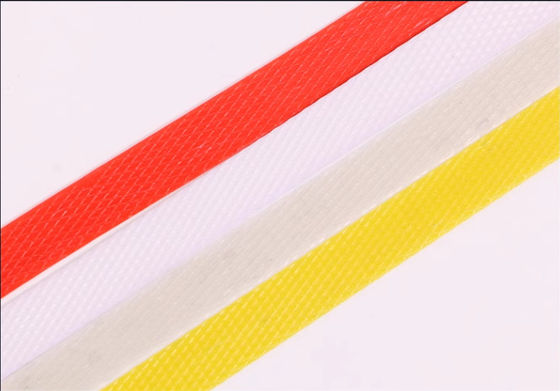

Our machines can produce belts in various colors and patterns to meet any requirements of customers.
