تفاصيل المنتج:
|
| نوع المنتج: | آلة صنع الأشرطة PET 3 | مادة خام: | رقائق PET أو مواد معاد تدويرها بنسبة 100% |
|---|---|---|---|
| نطاق سمك PET: | 0.6-12 ملم | عرض حزام الحيوانات الأليفة: | 9-32mm |
| إجمالي قوة التثبيت: | 250 كيلو وات (استهلاك الطاقة الفعلي 150-160%) | القوى العاملة: | 2 شخص / التحول |
| تتطلب الورشة: | الطول (60 م) × العرض (2 م) × الارتفاع (7 م) | مصدر الطاقة: | 380 فولت، 50 هرتز، 3 مراحل (حسب متطلبات العميل) |
| المكونات الكهربائية: | شنايدر | العاكس: | INVT |
| قوة المحرك: | سيمينس | مفاتيح: | تايوان يانجمينج |
| خدمة ما بعد البيع المقدمة: | الدعم الفني للفيديو، الدعم عبر الإنترنت | ضمان: | 1 سنة |
| إبراز: | Single Screw PET Strap Extrusion Line,3 Straps PET Packing Belt Machine,PET Sheet Production Line for APET |
||

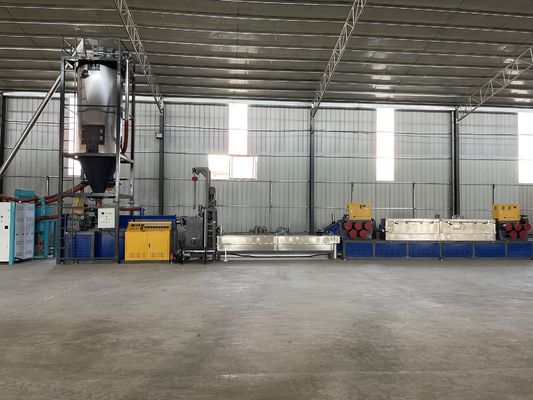

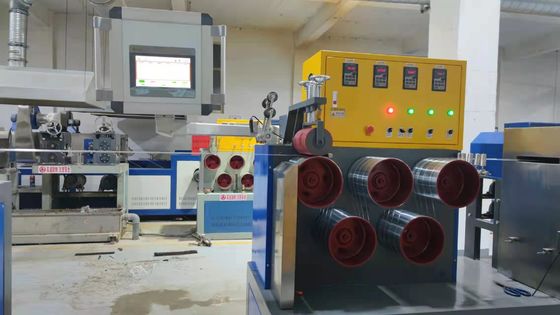

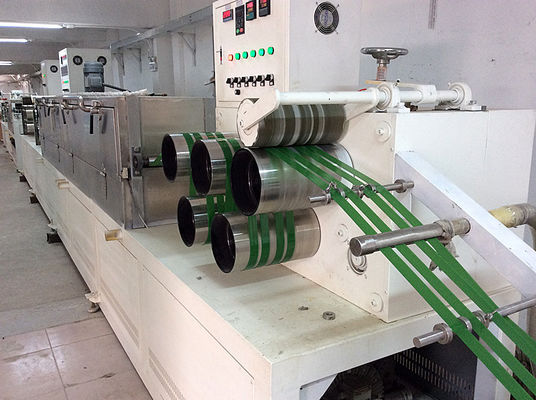

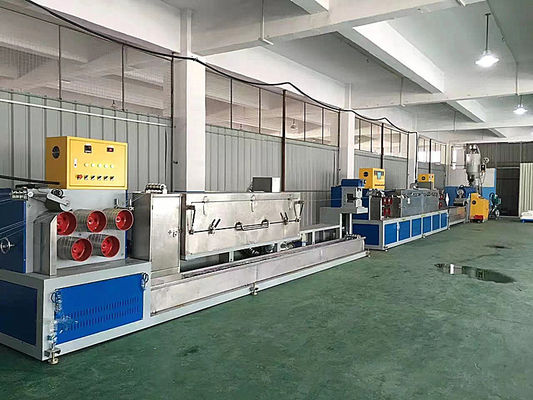

Single Screw 3 Straps PET Packing Belt Making Machine/ PET Strap Extrusion Line
Quick Details abour PET Packing Strap Production Line
PET sheet production line equipment is divided into three types: Crystallizing and drying PET sheet production line single screw, Parallel twin-screw vent-free crystal drying PET sheet production line, Venting single screw –free crystal drying PET sheet production line. It can produce single, multi-layer sheet by multi-extruder co-extrusion. Processed materials can be APET, PETG, CPET etc ,the Final Products is Widely used in thermal forming, printing, metal packaging.
Specificaition Of PET Strapping Machine
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity |
PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |
Features of PET packing strap production line:
1. Better tensile strength: the PET strap production line has the tensile strength of the steel belt, and the ductility is good, and the anti-impact performance is better. It is not easy to break, and it can ensure the safety of product transportation.
2. Strong temperature resistance: the experiment proved that the melting point of PET packing belt at about 260 ℃, can be used under the environment of 120 ℃ for a long time not to distort,it has a good stability.
3. Good economic benefit: the density of PET packaging belt is 1.30 ~ 1.38 g/cm3, which is only 1/6 of the steel belt density (7.8 g/cm3), which is equivalent to the length of the 6-ton steel belt, and the price of the same unit length is relatively low.
4. Environmentally friendly: the steel belt will rust due to exposure to the air, and the rust is highly permeable to the packaging. PET packing tape is beautiful and not rusted, but avoid unnecessary worry. It can also be recycled.
5. Small extension: Although PET strap is one kind of plastics, its extension of change is very small, its elongation is only 1/ 6 of polypropylene, it can maintain tension force, after the packing make the expansion no longer change.
6. Good flexibility and safe operation: the PET packing strip has no sharp edge with steel belt, it will not scratch the package, and it will not hurt the hand. You don’t need a special tool when you cut it, even if it’s tight, it doesn’t hurt when you cut it.
7.High quality packaging ideal products: PET packaging with all kinds of bright colors, shiny, high quality, the most ideal packaging products of high-end packaging
Advantages of PET Strap Making Machine
. process 100% recycled PET bottle flakes.
. even plasticization and stable extrusio with PLC automatic control for the whole line.
. as per different requirements, changing a coating materials for making strao has better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
. Melt filter with two pistons with air venting design amd back flushing.
. Production line just need 2-3 workers ,suit to 24 hours moving per day.
. Finished product: width: 5-25 mm, thickness: 0.5-1.5mm.
