تفاصيل المنتج:
|
| اسم المنتج: | آلة تصنيع أشرطة بي تي | مواد الأشرطة: | حيوان أليف |
|---|---|---|---|
| أصل: | الصين | خطأ في العرض: | في حدود 0.2 ملم |
| علامة تجارية: | جياتو | التوتر الشريط: | 150-850 كجم |
| العاكس: | INVT | نظام التحكم: | التحكم PLC |
| إبراز: | PET strap making machine with inverter,high-speed PET strap machine 250m/min,INVT inverter PET strap equipment |
||
Automatic Plastic Strap Machine PET Package Strap Band Extrusion Line
PRODUCT DESCRIPTION
PET strap is made of polyethylene terephthalate as the main raw material, it is currently used as a substitute for steel belt in the world. It can packing paper box,brick,wood pallet,cloth, glass,plastic pipe,other plastic product etc.Wide using in the life

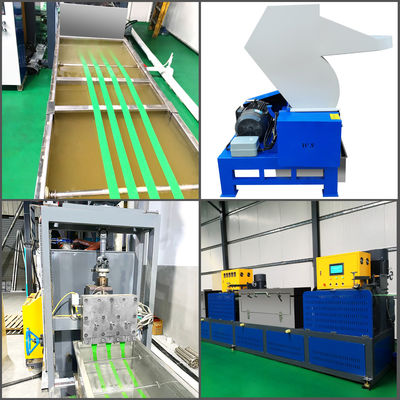

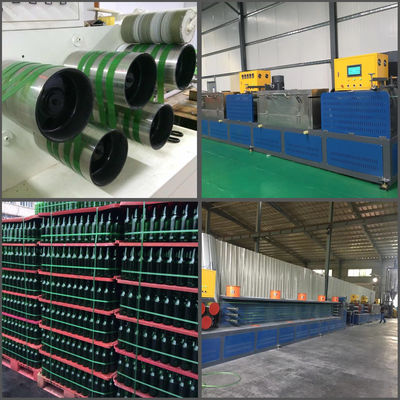

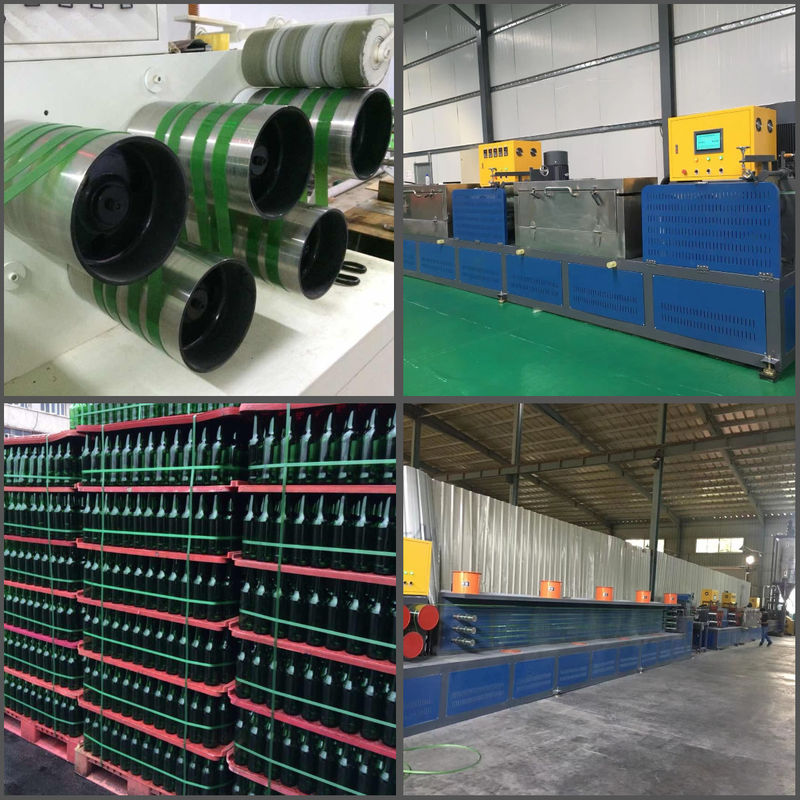

PET Strap Production Line Machine List
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity |
PETJT90:200kg/h PETJT100:250kg/h PETJT125:350kg/h |
| 4 | Product size |
Width:9-32mm Thickness:0.6-12mm |
| 6 | Mid-height of extruder | 7000mm |
| 7 | Installation power |
PETJT90:200KW PETJT100:250KW PETJT125:300KW |
| 8 | Humidity | <85% |
| 9 | Temperature | 0-40 degree |
| 10 | Cooling tower capacity | 30T/H or 50T/H |
| 11 | Installation Dimensions |
PETJT90:45*2.0*7.0M PETJT100:45*2.0*7.0M PETJT125:60*3.0*8.0M |
| 12 | Product color | Green/Black/Pink/Yellow |
| 13 | Factory dimension |
35m*(3~6)m*(4~6)m 45m*(3~6)m*(4~6)m If your factory not big enough,please contact with us,our engineer can according to your size to design |
Advantages of PET strap
Features of PET packing strap production line:
