تفاصيل المنتج:
|
| معالجة البلاستيك: | حيوان أليف | قطر المسمار (مم): | 100 ملم |
|---|---|---|---|
| القدرة الإنتاجية: | 300-350 كجم/ساعة | ضمان: | 1 سنة |
| عدد الشريط مقذوف: | 3 | نطاق التطبيق: | الطوب والمعادن والصلب والألومنيوم ومصنع الجعة |
| مرشح الشاشة: | اسطوانة مزدوجة / اسطوانة واحدة | نطاق سمك: | 0.4-1.2 ملم |
| نطاق العرض: | 9-32mm | المواد الخام القابلة للتطبيق: | مادة تقشر الزجاجة، 100% مادة مكسورة |
| أنظمة التحكم: | نظام التحكم الصيني/اللغة الإنجليزية PLC | قوة سخان: | 220 فولت، 50 هرتز، 6 كيلو واط/المجموعة |
| محرك: | سيمينس | العاكس: | INVT |
| قدرة برج ما قبل التجفيف: | 4000 لتر | تصميم المسمار: | برغي واحد |
| إبراز: | Single Screw PET Strap Making Machine,PET Strap Making Machine 350kgs/H,PET Strap Making Machine For Brickyard |
||
9-32mm Single Screw PET Strap Making Machine Japan German Technique Tensile Strength
Product Description of PET strap making extruder machine
Plastic PET strap belt sheet making extruder machine can produce different width and thickness PET strap according to client's requirement.
100% recycled material can be extruded by our PET strap extrusion machine. which can reduce the produce cost and get a good profit. And the PET strap is the substitution of the steel strap and has lots of advantages such as good extension, high temperature resistance, easy use, etc.
Technical Parameters of PET 1 to 3 production machine
| Item | JTPET-100 |
| Screw design | Single screw |
| Straps Qty. | 3 straps |
| Output/Day | 7.2-7.5T/24 hours |
| Screw Dia. | 100mm |
| Winder Qty. | 3 sets |
| Material used | PET raw material or 100% PET bottle flakes recycled |
| Running power | 180-190kw |
| Installed power | 250kw |
| Strap specifications | Width 9-32mm thickness 0.4-1.2mm |
| Workshop area | L (58m) ×W (2m) ×H (8m) |
| Electric components | Schneider |
Production Process of PET Strap Production Machine
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Heating →Pre-heating → Drawing and Stretching →Drawing and Stretching → Embossing →Hot Forming → Drawing → Winding
PET strap making line configuration reference
|
Item |
Name |
Quantity |
|
1 |
Dehumidification and drying system |
1 set |
|
2 |
Oil and dust filter |
1 set |
|
3 |
Horizontal mixer(4000L) |
1 set |
|
4 |
Pre-drying tower(4000L) |
1 set |
|
5 |
Screw Feeder |
3 set |
|
6 |
Barrel(4000L) |
1 set |
|
7 |
¢100mm Extruding Machine |
1 set |
|
8 |
Melt pump |
1 set |
|
9 |
Single cylinder filter |
1 set |
|
10 |
PET Mould output 3straps |
1 set |
|
11 |
Cooling water tank |
1 set |
|
12 |
Stretching oven |
1 set |
|
13 |
Five roller gearbox |
3 set |
|
14 |
PLC electrical control system |
1 set |
|
15 |
Forming oven |
1 set |
|
16 |
Double disk winder |
3 set |

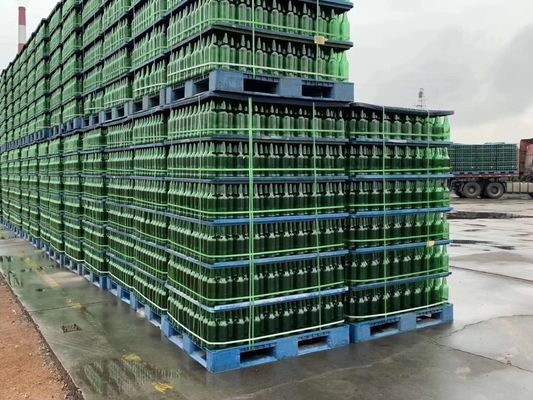

Application of PET strap
PET strap is wide use of plastic packaging with environmental protection. PET is the main raw material by extrusion one-way stretch forming a polyester packing belt, PET packing belt is the most popular international alternative steel, steel, heavy PP packaging with a new type of environmentally friendly packaging materials. It has been widely used in wood, paper, steel, aluminum ingot, steel pipe, profiles, glass, building materials, ceramics, electrical appliances and metal products , Tobacco, chemical fiber, cotton and other industries. Transparent appearance (opaque after adding auxiliaries), the surface is smooth or prismatic pattern. Our PET straps extrusion machine with 100% bottle flakes recycled material, to produce various specifications of PET strap.
