INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics

صورة كبيرة : INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	JIATUO CHINA
إصدار الشهادات:	ISO/ CE
رقم الموديل:	جتبيت-90

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	فيلم بلاستيكي
وقت التسليم:	50-60 يوم
شروط الدفع:	الاعتماد المستندي، تي/تي
القدرة على العرض:	50 مجموعة / شهر

اتصل

INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics

وصف

معالجة البلاستيك:	حيوان أليف	قطر المسمار (مم):	90 ملم
القدرة الإنتاجية:	200-250 كجم/ساعة	ضمان:	1 سنة
عدد الشريط مقذوف:	2	نطاق التطبيق:	الطوب والمعادن والصلب والألومنيوم ومصنع الجعة
مرشح الشاشة:	اسطوانة مزدوجة / اسطوانة واحدة	نطاق سمك:	0.6-1.2 ملم
نطاق العرض:	9-32mm	المواد الخام القابلة للتطبيق:	مادة تقشر الزجاجة، 100% مادة مكسورة
أنظمة التحكم:	نظام التحكم الصيني/اللغة الإنجليزية PLC	قوة سخان:	220 فولت، 50 هرتز، 6 كيلو واط/المجموعة
محرك:	سيمينس	العاكس:	INVT
قدرة برج ما قبل التجفيف:	3000L	تصميم المسمار:	برغي واحد
إبراز:	INVT Inverter PET Strapping Band Production Line , Machinery PET Strapping Band Production Line , INVT Inverter PET Strapping Band Extrusion Line

INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics

PET strapping band production line pet strap making machine Machinery Brick Ceramics

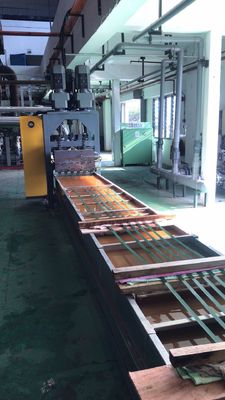

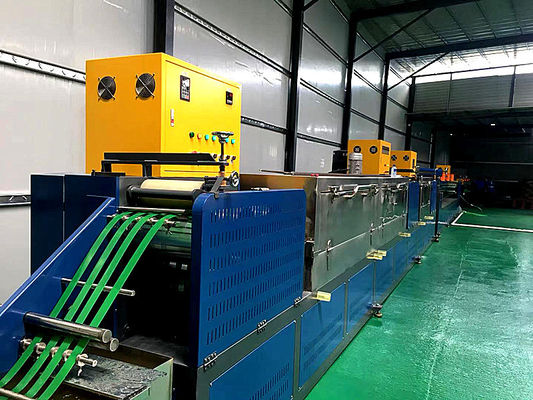

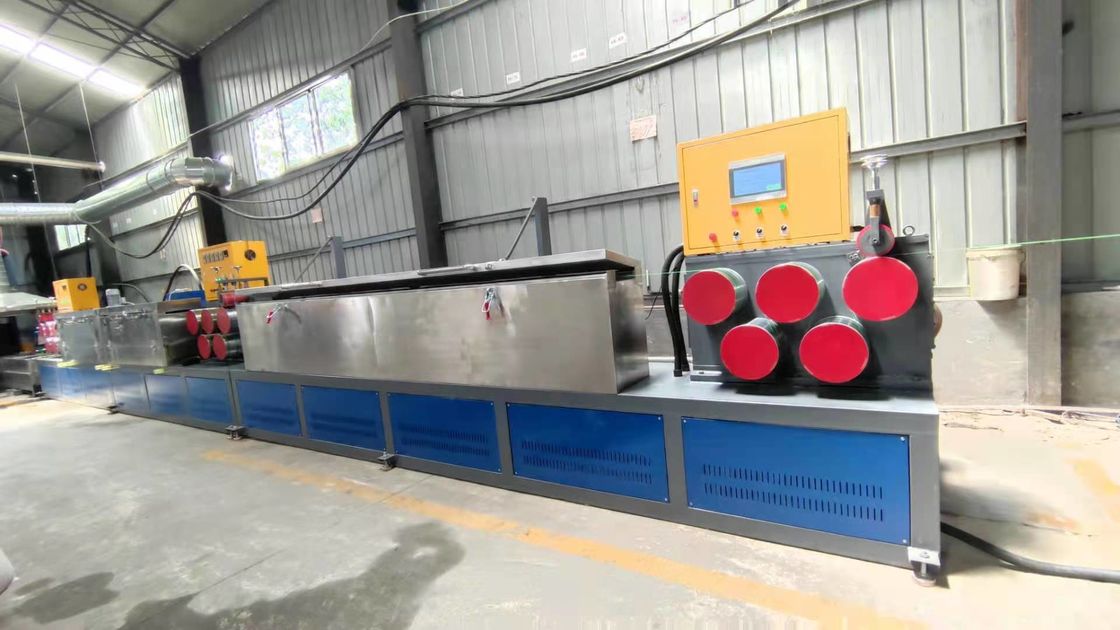

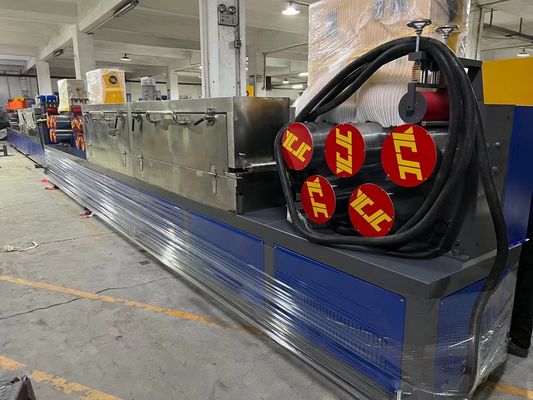

The PET packing belt production line is a complete set of equipment for producing PET strapping products by using bottle pieces of waste mineral water, Sprite, and Coke as raw materials.

Ingredients: Broken bottle pieces such as used mineral water, Sprite, and cola.

INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics 0

Technical Parameters of PET 1 to 2 production machine:

Item	JTPET-90
Screw design	Single screw
Straps Qty.	2 straps
Output/Day	5.5-6T/24 hours
Screw Dia.	90mm
Winder Qty.	2 sets
Material used	100% Recycled Bottle Flakes/Virgin Material/mixed with
Running power	110-120kw
Installed power	200kw
Strap specifications	Width 9-32mm thickness 0.6-1.2mm
Workshop area	L (55m) ×W (2m) ×H (7m)
Electric components	Schneider
Materials	PET raw material or 100% PET bottle flakes recycled

PET strap production line configuration reference:

Item	Name	Quantity
1	Dehumidification and drying system	1 set
2	Oil and dust filter	1 set
3	Horizontal mixer(3000L)	1 set
4	Pre-drying tower(3000L)	1 set
5	Screw Feeder	3 set
6	Barrel(3000L)	1 set
7	¢90mm Extruding Machine	1 set
8	Melt pump	1 set
9	Single cylinder filter	1 set
10	PET Mould output 2straps	1 set
11	Cooling water tank	1 set
12	Stretching oven	1 set
13	Five roller gearbox	3 set
14	PLC electrical control system	1 set
15	Forming oven	1 set
16	Double disk winder	2 set

INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics 1

PET strapping and steel strap comparison:

Appearance: The steel strip will rust due to exposure to moisture in the air. The strong rust permeability will easily contaminate the packaged object, and the PET strap will not rust, the color will be bright, and it is environmentally friendly. No need for steel buckle combination, no indentation, scratching,
Economic Benefit: The length of 1 ton PET strapping is equivalent to 6 tons of steel belt. The unit price per meter is lower than steel belt, which can reduce the cost for you.
Safety: PET plastic belt has no sharp edge of steel strip, will not scratch the package, and will not hurt the hand. Even if the binding is tight, it won't hurt when you cut it.
Packaging performance: The coating tightness after packaging is good. After long-distance transportation of the package, there will be expansion and contraction, and the PET tape can maintain a good tension. PET steel strip has good ductility, good impact resistance, and is not easy to break, which ensures the safe transportation of your products.
Economic Benefits: The density of PET plastic strip is only 1/6 of the density of steel strip, and the price per unit length is relatively low.

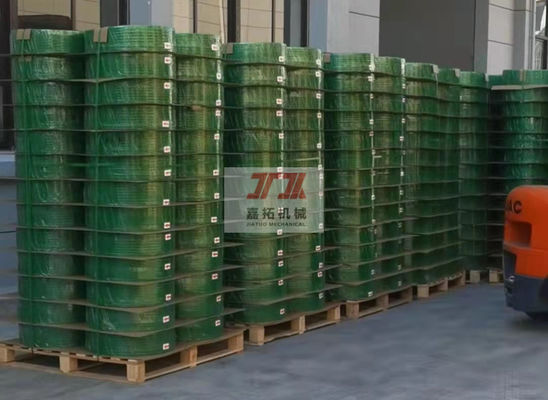

PET packing belt finished product features:

Made of POLYESTER (PET) material, commonly known as plastic steel belt, is made of polyethylene terephthalate as the main raw material, it is currently used as a substitute for steel belt in the world. A new type of environmentally-friendly packaging material has been widely used in the steel industry, chemical fiber industry, aluminum ingot industry, paper industry, brick kiln industry, screw industry, tobacco industry, after the development of new materials and the significant cost reduction in recent years. Electronics, textiles and wood.

Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained for a long time.
Strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120 ° C, maintaining good stability.

INVT Inverter PET Strapping Band Production Line Machinery Brick Ceramics 2
