تفاصيل المنتج:
|
| معالجة البلاستيك: | PP PET | وضع التغذية: | ثلاثة مغذية |
|---|---|---|---|
| أفسد: | برغي مفرد/مزدوج | الأتمتة: | تلقائي |
| التخصيص: | متاح | القدرة الإنتاجية: | 350-600 كجم |
| العاكس: | INVT | تقرير اختبار الآلات: | متاح |
| التحكم في درجة الحرارة: | تايوان فوتيك | محرك: | سيمينس |
| أنظمة التحكم: | نظام التحكم الصيني/اللغة الإنجليزية PLC | ضمان: | 1 سنة |
| قطر المسمار (مم): | 100 ملم | سماكة: | 0.4-1.2 ملم |
| عدد الأشرطة: | 3 | نطاق التطبيق: | نطاق التطبيق |
| إبراز: | Flakes PP PET Strap Making Machine,Three feeder PET Strap Making Machine,PLC System PET Strap Making Machine |
||

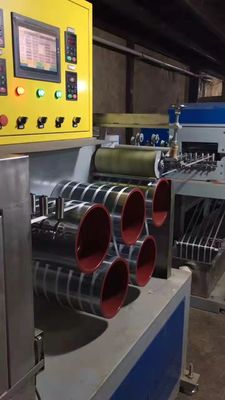

Recycled Pet Flakes PP PET Straps Production Machine 3 Line Polypropylene Tape
Descripition
PP PET strap making machine
This machine is mainly used to make PET strap ,PP packing strap.
Our machines adopts the PLC control to realsize the whole line auotmatic production.
Using the melting pump and pressure sensor ensure the production stable and strap quality control.
The raw material can be 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.
![]()
Configuration reference
PET output 3 making machine
| Item | Name | Quantity |
| 1 | Dehumidification and drying system | 1 set |
| 2 | Oil and dust filter | 1 set |
| 3 | Horizontal mixer(4000L) | 1 set |
| 4 | Pre-drying tower(4000L) | 1 set |
| 5 | Screw Feeder | 3 set |
| 6 | Barrel(5000L) | 1 set |
| 7 | ¢100mm Extruding Machine | 1 set |
| 8 | Melt pump | 1 set |
| 9 | Single cylinder filter | 1 set |
| 10 | PET Mould output 6straps | 1 set |
| 11 | Cooling water tank | 1 set |
| 12 | Stretching oven | 1 set |
| 13 | Five roller gearbox | 3 set |
| 14 | PLC electrical control system | 1 set |
| 15 | Forming oven | 1 set |
| 16 | Double disk winder | 3 set |
Features

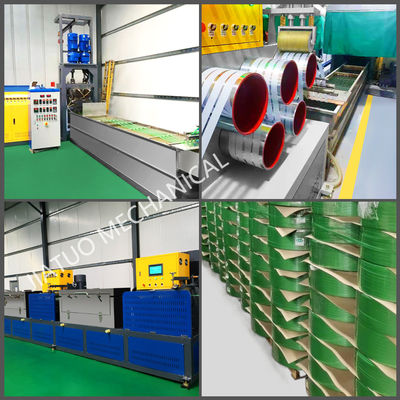

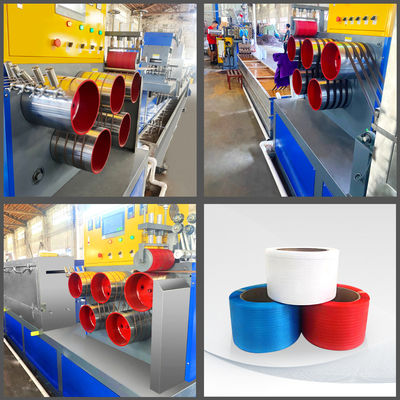

PP PET belt production line
![]()
![]()
Why choose JIATUO MACHINERY?
