Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder

صورة كبيرة : Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder

تفاصيل المنتج:

مكان المنشأ:	الصين
اسم العلامة التجارية:	JIATUO CHINA
إصدار الشهادات:	ISO/ CE
رقم الموديل:	جتبيت-100

شروط الدفع والشحن:

الحد الأدنى لكمية:	1 مجموعة
الأسعار:	قابل للتفاوض
تفاصيل التغليف:	فيلم بلاستيكي
وقت التسليم:	50-60 يوم
شروط الدفع:	الاعتماد المستندي، تي/تي
القدرة على العرض:	50 مجموعة / شهر

اتصل

Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder

وصف

معالجة البلاستيك:	حيوان أليف	قطر المسمار (مم):	100 ملم
القدرة الإنتاجية:	250-280kg/h	ضمان:	1 سنة
عدد الشريط مقذوف:	3	نطاق التطبيق:	الطوب والمعادن والصلب والألومنيوم ومصنع الجعة
مرشح الشاشة:	اسطوانة مزدوجة / اسطوانة واحدة	نطاق سمك:	0.4-1.2 ملم
نطاق العرض:	9-32mm	المواد الخام القابلة للتطبيق:	مادة تقشر الزجاجة، 100% مادة مكسورة
أنظمة التحكم:	نظام التحكم الصيني/اللغة الإنجليزية PLC	قوة سخان:	220 فولت، 50 هرتز، 6 كيلو واط/المجموعة
محرك:	سيمينس	العاكس:	INVT
قدرة برج ما قبل التجفيف:	4000 لتر	تصميم المسمار:	برغي واحد
التحكم في درجة الحرارة:	تايوان فوتيك	التبديل وغيرها من الكهربائية:	شنايدر
إبراز:	280kg/H PET Strap Extrusion Machine , Automatic Winder PET Strap Extrusion Machine , SIMENS Motor PET Strap Extrusion Machine

Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder

PET Packing Strap Production Line Description

This machine is main used to make pet strap ,pet packing strap .
Adopt the plc control the whole line do the auotmatic production
it use the melting pump and pressure sensor ensure the production stable and strap quality control
The raw material you can use is 100% recycled pet flakes from the waste pet bottles,or virgin material or mixed with each other.

PET Output 3 Strap Production Line Configuration Reference

Item	Name	Quantity
1	Dehumidification and drying system	1 set
2	Oil and dust filter	1 set
3	Horizontal mixer(5000L)	1 set
4	Pre-drying tower(5000L)	1 set
5	Screw Feeder	3 set
6	Barrel(5000L)	1 set
7	¢100mm Extruding Machine	1 set
8	Melt pump	1 set
9	Single cylinder filter	1 set
10	PET Mould output 2straps	1 set
11	Cooling water tank	1 set
12	Stretching oven	1 set
13	Five roller gearbox	3 set
14	PLC electrical control system	1 set
15	Forming oven	1 set
16	Double disk winder	3 set

Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder 0

PET packaging belt production line Process Flow

① feeding→② mixing raw materials→③ raw material pre-drying→④ vacuum dehumidification of raw materials→⑤ raw materials melting extrusion→⑥ material embryo expression(with embryo) cooling molding→⑦oven preheating→⑧first stretching→⑨second stretching→⑩embossing→⑪ oven tempering to set the shape→⑫ cooling → ⑬winding(finished product)

PET packaging belt production line Application & Features

High tenslie strength,small percentage elongation, resistance to impact, not easy to be broken,cheap,good softness, connveninet operation,safe and reliable.
In the world,it is ideal substitute of steel belt.
It is widely used in papermaking,wooden products textile cotton and fibre,color metal, cannedproducts , chemical, metallurgy, powercable, aluminium.Plastic shaped materials and other products and various kinds of trays.
The usage of the product is convenient.It can adopt common steel fastening for connection.
It also is suitable for various kinds of hand-operated of table packing machine and large auto packing machine of enterprises
It adopts hot-melting connection.

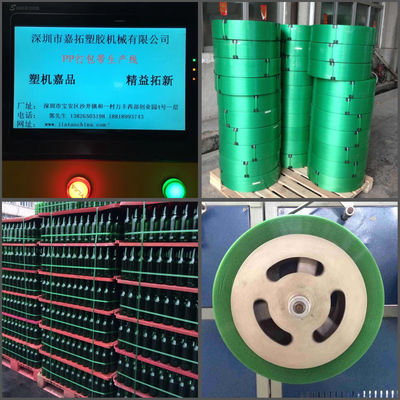

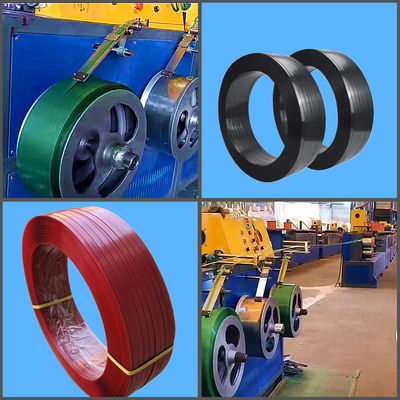

PET strapping finished products

As you can see that the PET strapping can be available in different colors with different patterns, or can be printed with your company logo or any logo you want to display according to your requirements, the different colors depend on the color masterbatch you use. And we are using constant force winding system with unique design parameters in our machine, which meets high output, excellent winding effect and flat and beautiful on both sides.

Double Insulation Drying Drum PET Strap Extrusion Machine Automatic Winder 2
