تفاصيل المنتج:
|
| ضمان: | 1 سنة | دعم مخصص: | تصنيع المعدات الأصلية |
|---|---|---|---|
| اسم العلامة التجارية: | Tensile tester | قوة: | الكترونية |
| الحد الأقصى لقوة الاختبار: | 500 كجم | سرعة الاختبار: | 0.01～500 مم/دقيقة |
| البعد الآلة: | 370×310×1020 ملم | وزن: | 35 كلغ |
| طلب: | ص | مطبعة: | يمكن طباعة تقرير الاختبار |
| مساحة التمدد الفعالة (مم): | 460 ملم | القوة المضيفة: | 1∮، 220 فولت/50 هرتز، 5 أمبير (يمكن تخصيصها وفقًا للعميل) |
| دقة التحميل: | ±0.3% | وحدة: | ز، كجم، إب، N، KN |
| إبراز: | pp strap Tensile tester,Microcomputer Control Tensile Testing Machine,PP Belt Tensile tester |
||

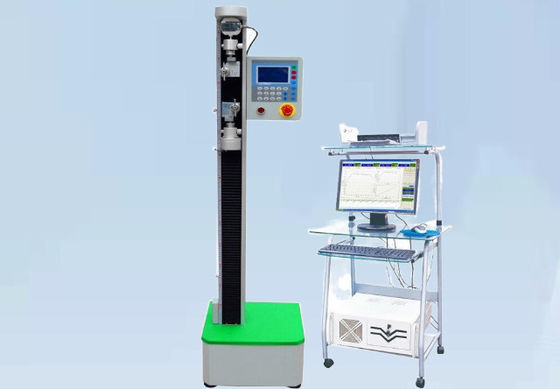

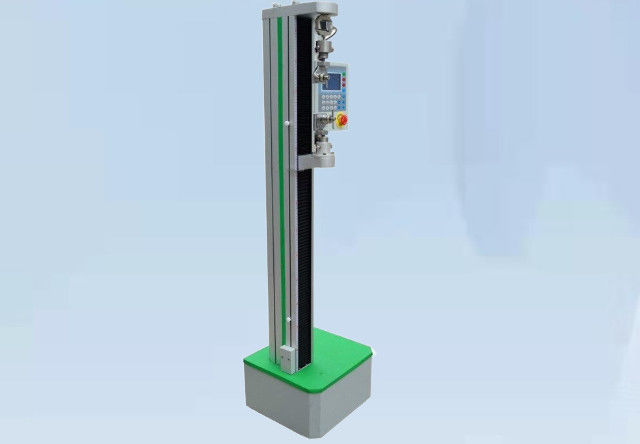

Microcomputer Control Tension Tensile Breaking Strength Testing Machine For PP
Description of tensile testing machine:
This machine is a simple tensile testing machine with simple structure and convenient operation, which can be placed on the workbench for testing. The electronic control system is used to control the rotation of the speed-regulating motor by the governor, and then the T-screw is driven to drive the load sensor to rise and fall after deceleration by the variable-speed mechanical mechanism to complete the tensile or compression test of the sample. The force value is output by the sensor, the feedback display is displayed, and the test displacement is displayed in real time. It can store the results of 10 test reference points, automatically calculate the average value, automatically grab the value, and the force value when breaking. The machine includes a thermal printer, which can automatically output the test results. (optional) This machine is easy to operate and is suitable as a testing instrument for product quality control on the production line. This series of models is mainly suitable for non-metallic and metal material tests with a test load of less than 850kg for PP packing belt.
System Configuration of the Testing Line:
| NO. | Name | Quantity |
| 1 | microcomputer controlled tension testing machine | 1 set |
| 2 | silicone protection sleeve | 1 pcs |
| 3 | sensor | 1 pcs |
| 4 | clamp | 1 set |
| 5 | power cable | 1 pcs |
| 6 | specification | 1 set |
| 7 | quality guarantee | 1 pcs |
| 8 | warranty card | 1 pcs |
Technical parameter of tensile testing machine:
| Maximum test force (N) | 500KG |
| Return function | It will come on origin point when finfished to test |
| Unit | g,kg,Ib,N,KN |
| Load Accuracy | ±0.3% |
| Speed of testing | 0.01～500 mm/min |
| Safety protection device | Mechanical limit protection and software overload protection |
| Effective stretching space (mm) | 460mm |
| Stretching fixture | According to material selection |
| Mainframe dimensions (mm) | 370×310×1020mm |
| Host power | 1∮,220V/50HZ,5A (can assign according to customer) |
| Host weight (KG) | 35KG |
