تفاصيل المنتج:
|
| نوع المنتج: | آلة بثق موزع شريط الربط PET / PP / أحزمة تغليف حزام البوليستر خط إنتاج شريط الربط PP | مادة خام: | حبيبات المواد الخام من مادة البولي بروبيلين PP، الكريات المعاد تدويرها |
|---|---|---|---|
| تصميم المسمار: | خياري | نوع برغي مزدوج: | شارك في الدورية الموازية التوأم المسمار |
| نوع مدفوعة: | كهربائي | نوع المعالجة: | آلة البثق |
| الأتمتة: | تلقائي | طلب: | حزام التعبئة والتغليف |
| سرعة الخط: | 200-300 م/دقيقة | وينث: | 5-19 مم |
| إبراز: | Width 5mm PP Strap Extrusion Machine,19mm PET Strapping Band Extrusion Line,5mm PET Packing Straps Extrusion Machine |
||

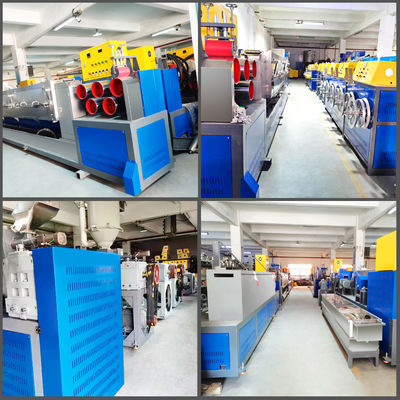

PP strapping band making machine 5-19mm PP PET automatic strapping band production line
Quick Detail Of PP Strap Making Machine
Name: PP 1 to 4 strapping production line
Model number: JTPP-110
Applicable raw materials: New PP particles, PP recycled materials, PP crushed materials
Number of screws: 1 Screw
Number of extruded belts: 4
Width range: 5-19mm
Thickness range: 0.4-1.2mm
Production capacity: 200kg/h
Installation size: L38*W2.0*H4.0(m)
Raw materials:
100% polypropylene new material or recycled material
Configuration Of PP Strapping Production Line
| NO. | Name | QTY |
| 1 | Color Mixer | 1 set |
| 2 | Vacuum feeder or screw loader feeder (100% raw material use vacuum feeder machine;recycled material use screw loader feeder machine) customer choose one of it. |
1 set |
| 3 | Hopper dryer | 1 set |
| 4 | SJ single screw extruder | 1 set |
| 5 | High speed Screen exchanger device | 1 set |
| 6 | Molud | 1 set |
| 7 | Water cooling tank | 1 set |
| 8 | The first traction machine- 5 rollers | 1 set |
| 9 | The first Stretch forming oven | 1 set |
| 10 | The Second traction machine- 5 rollers | 1 set |
| 11 | The second Stretch forming oven | 1 set |
| 12 | The Third traction machine- 3 rollers | 1 set |
| 13 | Embossing machine | 1 set |

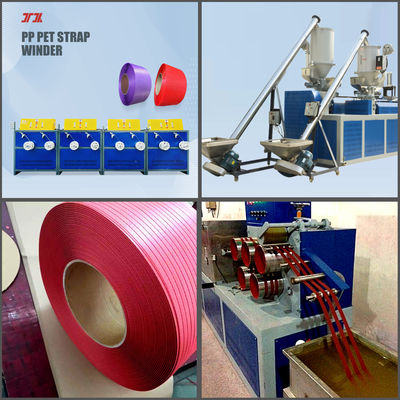

| 14 | The Winder machine | 1 set |
Features of PP strapping equipment
High degree of automation: reduce manual intervention, improve efficiency, PLC control, easy debugging.
High production efficiency: continuous production, large output, 24-hour non-stop production.
Stable product quality: automated control ensures consistency of extrusion specifications, suitable for high-end strapping machines.
Features of the oven:
1. There is a high-power heating tube inside the oven, and the hot air circulation method makes full use of heat energy to reduce power loss.
2. High-temperature resistant silicone seals keep the oven super tight
3. Special high-efficiency all-stainless steel electric heating tube, fast heating, long-lasting and durable
4. Reheating makes the PP strapping tape shrink in the oven, and the straightness of the strapping tape produced is more standardized and the shrinkage rate is smaller.
FAQ
Q:What is the voltage of PP strapping equipment?
A:380V/50HZ, we support customization
Q:What is the length of the PP strapping tape??
A: L:36 M.
Q:Where is the PP strapping equipment produced?
A:We are from China.
Q:Can PP strapping equipment provide after-sales service?
A:Yes, we have professional after-sales engineers who provide 24-hour online guidance.
Q:Is the quality of PP strapping equipment stable?
A:We have 30 years of manufacturing experience, and have their own PP packaging belt production plant, equipment quality is stable, the process is worth choosing.
Q:Does PP strapping equipment support customization?
A:We are a manufacturing plant that can customize model size, extrusion capacity, voltage and so on according to customer requirements.
Q:What does the wrapping machine part of the PP strapping equipment look like?
A:Equipped with automatic wrapping machine/semi-automatic wrapping machine.
