100% Recycled Material PP Packing Strap Making Machine Thickness 0.4-1.2mm

100% Recycled Material PP Packing Strap Making Machine Thickness 0.4-1.2mm

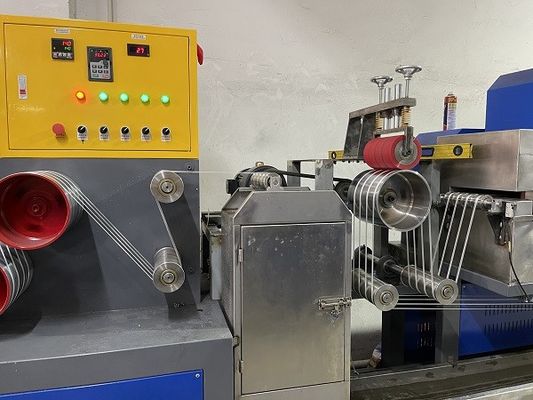

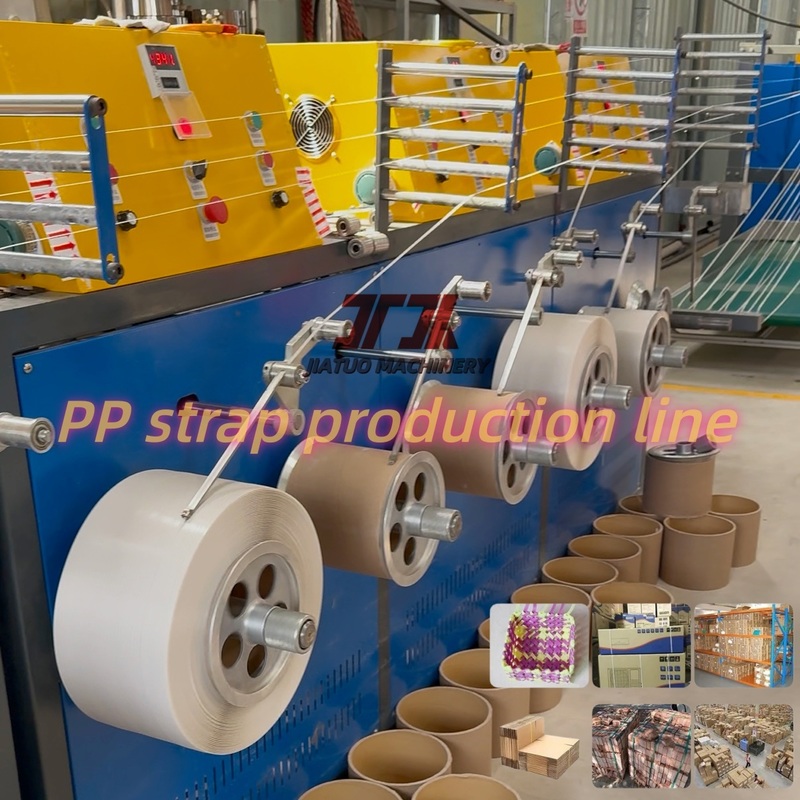

Description of PP strap band production machine

This production line is used for making full automatic PP strapping band and manual PP strap band for packing use. The width of the strap band is 5-19 mm, thickness is from 0.4-1.2 mm.

Packing belt equipment adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production, extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable, the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.

Parameters of PP double straps output making Line

Process flow of PP packing belt production line

① Feeding →② stirring →③ pre-drying →④ melting and measuring extrusion →⑤ embryo (belt embryo) cooling and forming →⑥ oven preheating →⑦ primary stretching →⑧ secondary stretching →⑨ embossening →⑩ oven tempering and setting →⑪ cooling →⑫ finished product winding

Remarks: If there is a printing machine after the second stretching first printed and then embossed in item 8.

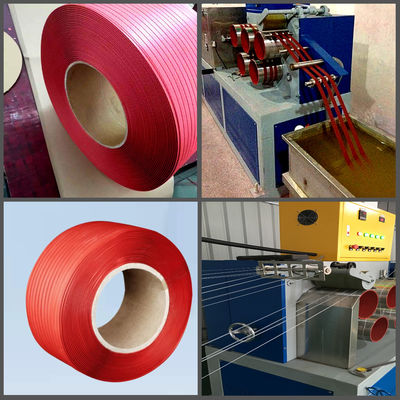

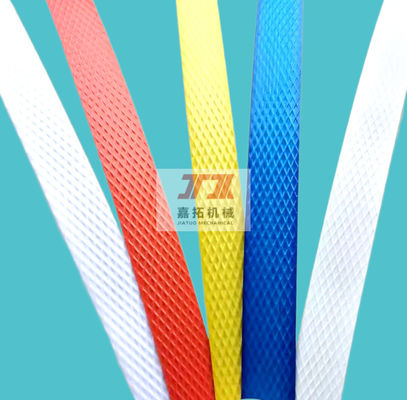

Application of PP strapping

PP strapping is mainly used to bind lighter objects. The cartons what we usually use are sealed with PP packing belts, and the tension can reach between 50kgs-240kgs depending on different widths and thicknesses.

Advantages for PP Making Machine

• The production of plastic materials can be made of recycled materials or mixed new materials to produce packing belts.

• The cutting of foreign-quality CNC machine tools and high-precision die parts make the product forming quality stable and the thickness error range is less than the national acceptance standard for packing straps.

• The unique cooling cycle system and multiple sets of shaped guide rails make the packing belt cooler and shrink better and more accurate in size. The internal reciprocating winding method makes full use of heat energy and effciently reduces power loss.

• The equipment adopts intelligent PLC Chinese/English control system, simple to understand, beautiful, durable, long life, low failure rate. The equipment has an exclusive parameter memory system, the data of each specification after production can be stored,the next production can directly call out the parameters.

​​

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory,can give u best service.

Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 years guarantee . we will give u spare part free in 1 years.

Q3: When can I get my machine after I paid?

A3: We will deliver the machines on time as the date we agreed both side.

Q4: How can I install my machine when it arrives?
A4: We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.

Q5: How about the spare parts?
A5: After we deal down all the things , we will offer you a spare parts list for your reference.

​
