تفاصيل المنتج:
|
| مواد الإنتاج: | مادة البولي بروبيلين المعاد تدويرها | عدد الحزام: | 2 حزام |
|---|---|---|---|
| عرض: | 5-19 ملم | قدرة البثق: | 120 كجم/ساعة |
| نموذج المسمار: | 90 | مغير الشاشة: | تلقائي أو يدوي |
| القدرة الإنتاجية: | 280 كجم/ساعة | لون: | أزرق ورمادي |
| إبراز: | Width 5mm PP Packing Belt Machine,19mm PP Packing Belt Machine,Width 5mm Packing Belt Making Machine |
||
Width 5mm 19mm PP Packing Belt Machine Double Output Recycled Material
PP Strap Double Output Packing Belt Making Machine 280kgs/H recycled material
PP Strap making machine of Application:
This PP-2 Straps Packing Belt Making Machine can produce different width and thickness pp straps according to the requirement of the clients.
It can using the 100% recycled material or mixed the new and recycled material together, which can reduce the product cost and get a good profit.
It mainly suitable for pp belts used in light goods
PP double output making machine of Advantages:
Use the PLC computer control system to memory the last parameter; it has Chiese and English versions to using
Good extension(such as the width of 5mm and the thickness of 0.45mm can arrive at 50KGS pull)
High temperature resistant
Use less power to save costs
It only takes two person to operate that can saving labor
High production capability (It is the best important advantage for you reference)
The errors of the width and thickness over the standard level of industry
|
1 |
Materials |
Polypropylene PP raw material pellets, recycled pellets. |
|
2 |
Product |
PP strap (1 mould for 2 straps) |
|
3 |
Capacity |
280kg/h |
|
4 |
Total install power |
80kw, (actual power consumption is 40-50%) |
|
5 |
Strap width |
5mm-19 mm |
|
6 |
Thickness |
0.4 mm-1.2 mm |
|
7 |
Manpower |
2person/shift |
|
8 |
Workshop required |
L (28m) ×W (2m) ×H (4m) |
|
9 |
Cooling water |
≤20℃,≥0.3Mpa, 5-8Ton/hr |
|
10 |
Compressed air |
0.5-0.8Mpa |
|
11 |
Power source |
380V, 50Hz, 3Phase (according to customer requirement) |
|
12 |
Electric components |
Schneider |
|
13 |
Inverter |
INVT |
|
14 |
Switchef |
Fotek |
|
15 |
Motor power |
GUGAO |
|
16 |
Machine frame |
100*100*2.5 mm(GB quadrate pipe)
|

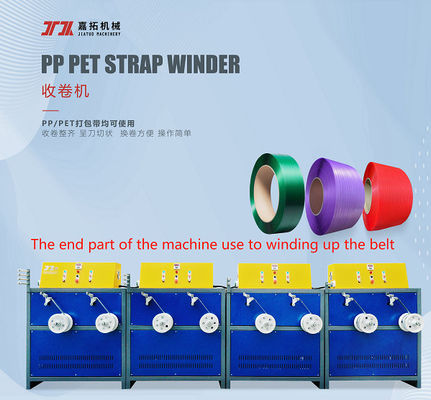

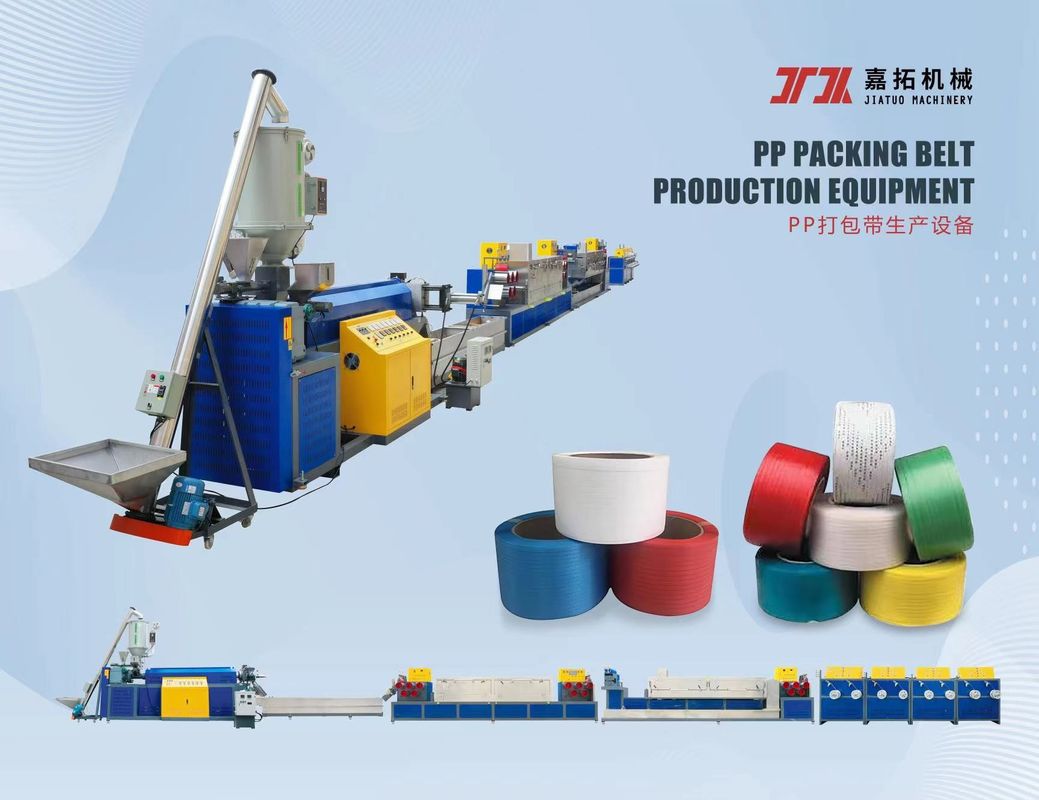

Pictures of the machine:
Process flow of PP strap making machine:
①Material→②Stirring raw material→③Pre crystallization drying→④Extruding→⑤Cooling→⑥Oven preheating→⑦Primary stretching→⑧Secondary stretching→⑨Embossing→⑩Hot forming→⑪Cooling→⑫Winding(finished product)
Certifications:
Welcome to visit us:
Our factory address:101A, 1st Floor, Building 20, Second Industrial Zone, Shapuwei Community, Songgang Street, Baoan District, Shenzhen China
FAQ:
Q: Why I choose your company?
A: 1.We are one of the leading manufacturers of packing materials and related machinery .
2.Our company has made the PP/PET packing belt making machine 20 years with strong experience and advanced technique
3.Best Quality & Best Service with Competitive price.
4.We have Professional technical team.
Q: How can I make sure the machine running good in my plants?
A: first we will have a instruction of the installing and staff training online,if you need assistance in installing and staff training, we can also send engineers to service oversea and solve all problems.
Q: How long is the guarantee of your machine?
A: 1 year, Main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance.
