تفاصيل المنتج:
|
| نوع المنتج: | اللفاف التلقائي الكامل للحزام | المكونات الأساسية: | بلك، المحرك |
|---|---|---|---|
| عرض: | 5-19 مم | إمداد: | ثلاث مراحل أربع أسلاك التيار المتردد |
| ضمان: | 1 سنة | خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج |
| رمز النظام المنسق: | 3920690000 | سماكة: | 0.3-1.2 مم |
| وضع التحكم: | بلك | المعالجة السطحية: | لامعة / تنقش |
| إبراز: | Double Station PP PET Strap Winder,Manual Winder PET Strap Making Machine,20mm PP PET Strap Winder |
||

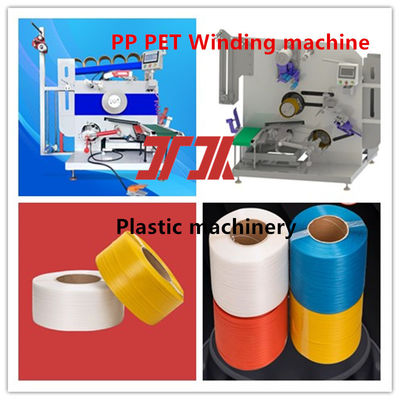

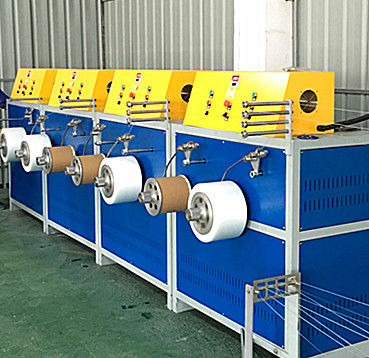

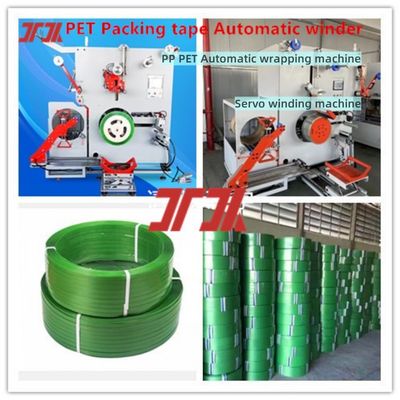

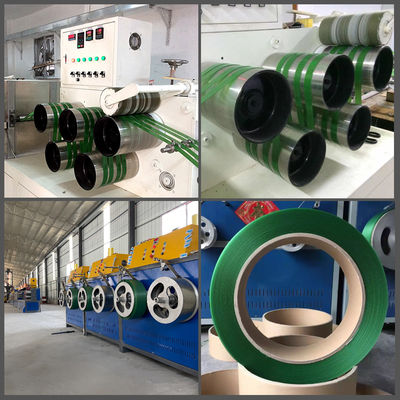

Plastic PP PET Strap Making Machine 5-19mm PP PET strapping production line PLC control system
PRODUCT DESCRIPTION
PET strapping production line is a high-speed, intelligent, environmentally friendly plastic equipment, its advantages:
RAW MATERIALS
PET plastic steel belt can use raw materials: 100% bottle flakes or crushed materials or thickening granular materials
1. Bottle flakes--- waste mineral water, Sprite, Coke and other bottle flakes as raw materials, after crushing, cleaning, drying materials.
2. Crushed materials---- finished PET plastic steel belt after crushing, screening, cleaning, drying raw materials;
3. Thickening granular materials----PET crushed materials after processing, cleaning, thickening granular materials
| Model and parameters | 75 | 90 |
| Packing tape quantity | 1 | 2 |
| Packing strap specifications | 9.5~19mm | 9.5~19mm |
| Max output | about 100kg/h | 180kg/h |
| Cooling water flow | 0.6m³/h | 0.6m³/h |
| Compressed air consumption | 0.25m³/min | 0.25m³/min |
| Compressed air pressure | 0.6Mpa | 0.6Mpa |
| Total installed power of equipment | 230KW | 300KW |
| The length of the line | about 32-35 meters | about 45 meters |
TECHNICAL SPECIFICATION
FEATURES
PET packing belt finished product features: made of POLYESTER (PET) material, commonly known as plastic steel belt, is made of polyethylene terephthalate as the main raw material, it is currently used as a substitute for steel belt in the world. A new type of environmentally-friendly packaging material has been widely used in the steel industry, chemical fiber industry, aluminum ingot industry, paper industry, brick kiln industry, screw industry, tobacco industry, after the development of new materials and the significant cost reduction in recent years. Electronics, textiles and wood.
1 Tensile: PET plastic strip is a kind of packaging material with good tensile strength and excellent welding performance.
2 The elongation is small: the elongation is only one-sixth of that of the polypropylene (PP) belt, and the tension can be maintained for a long time.
3 strong temperature resistance: melting point of 260 degrees, superior weather resistance, between -50 ° C -120 ° C, maintaining good stability.
Winder is available in mechanical system or PLC system. Conventional mechanical winder with fixed traverse cam involves change of gears ratio for laying of different strap size. The advanced PLC control winder capable for parameter management enable winding of different
strap sizes by simple input of strap specs.
Optionally with interchangeable mandrel and traverse guide, each unit is capable for winding of various strap gauge and every kind of bobbin core which ultimately giving an overall flexibility of the winder unit.
Traverse control for laying of different strap size.it is capable for winding of various strap gauge and every kind of bobbin core
