تفاصيل المنتج:
|
| نوع المنتج: | خط بثق حزام التعبئة PP | مادة خام: | حبيبات المواد الخام من مادة البولي بروبيلين PP، الكريات المعاد تدويرها |
|---|---|---|---|
| تصميم المسمار: | من 1 إلى 3 | نوع المعالجة: | آلة البثق |
| نوع مدفوعة: | كهربائي | قوة: | 80 كيلو واط |
| سعة: | 100 كجم/ساعة | نوع برغي مزدوج: | شارك في الدورية الموازية التوأم المسمار |
| طلب: | حزام التعبئة والتغليف | الأتمتة: | تلقائي |
| ضمان: | 1 سنة | ||
| إبراز: | 100kg/H PP strapping band making machine,0.45mm PP strapping band making machine,80KW pet strapping band making machine |
||

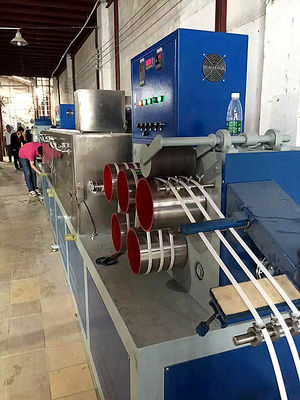

100kg/H 0.45mm 0.5mm PET PP Strapping Band Making Machine 80KW With PLC Control System

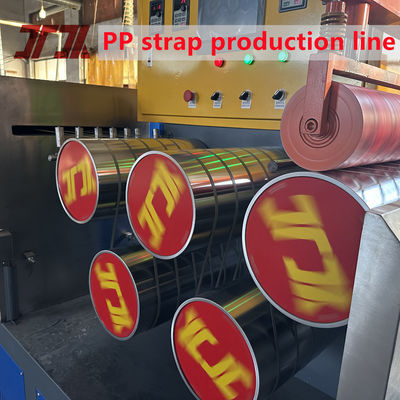

Plastic Packing Production Line / PP PET Belt Strapping Extruder Machine
PRODUCT DESCRIPTION
PP strap making machine is mainly for producing PP strap.
PP strap production line is used to produce mechanical or manual bands with 100% PP recycled granules as materials, if raw materials, it will be better. This kind of band is widely used in the packing of kinds of fields such as mines, general merchandise, weaving, electrical equipment, apparatus, architecture, medicine, etc.
| Model No. | Screw Size | No. of strap | Capacity | Total Power | Width Range | Thickness Range | Installation Dimensions |
| JTPP-90 | 2800mm | 2 | 100-125kg/h | 80kw | 5-19mm | 0.4-1.2mm | 30*2.0*4.0M |
| JTPP-100 | 2800mm | 3 | 150-180kg/h | 90kw | 5-19mm | 0.4-1.2mm | 30*2.2*4.0M |
| JTPP-110 | 3300mm | 4 | 230-260kg/h | 100kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
| JTPP-125 | 3300mm | 6 | 350-380kg/h | 110kw | 5-19mm | 0.4-1.2mm | 38*2.0*4.0M |
Function of PP Strap making machine
1) PP raw materials do not need to separate the dry and water treatment . There are automatic circulation on preheating and drying that save a large number of equipment investment and reduce the production cost by 30%;
2) Utilizing the retrieving bottle slice as raw materials that reducing the cost to a great extent;
3) Low Energy consumption, but high production capability;
4)Easy to operate, save the manpower and two persons for one production line on average
1. Produce 1-12 straps at the same time.
2. Automatic operation and labor saving.
3. High production.
4. Reasonable drive system and unique oven. Energy saving.
5. Safety, environment protection and economy.
6. Produce lighter weight straps( L: 12, W: 0.6 strap, only 3.1g) .
7. Produce manual and automatic machine straps 8. Low skewness,strong tensile strength and stable quality.
1. Polypropylene (PP) is the main raw material, material: polypropylene wire-drawing grade resin, because of its good plasticity, strong breaking tension, bending fatigue resistance, low density, good tensile impact performance, easy to use and other advantages, has been used in various broad role in the field.
2. Various strapping machines (semi-automatic, full-automatic, manual strapping machines) suitable for all walks of life
3. Small elongation: The elongation is only one-sixth of that of polypropylene (PP) tape, which can maintain the tension for a long time.
4. Strong temperature resistance: the melting point is 260 degrees, and it will not deform when used below 120 degrees.
5. Good flexibility: no sharp edges of steel belts, safe operation, neither hurting hands nor damaging the bundled objects.
6, good color, can produce various colors, production of printing, printing icons and so on.
Advantage of our machine
1. This line is specially designed for the production of PP Straps. It can produce 2 PP Straps at the same time that saves energy by 20%-30%;
2. Both the Shaping Water Tank and Calibrating Tank are made of stainless steel that the tanks are long-lived;
3. PLC Controller by touching keys with alternative languages, which is safe and easy to operate that keeps good status of all part and ensures the stable performance of whole line and continuous production of PP Straps.
