تفاصيل المنتج:
|
| نوع المنتج: | ماكينة تصنيع حزام PP | مادة خام: | ص |
|---|---|---|---|
| نوع المعالجة: | آلة البثق | تصميم المسمار: | برغي مفرد، برغي مزدوج، مفرد أو مزدوج |
| طلب: | الورقة والحزام والأنابيب وشريط التغليف والشريط والحزام | نوع مدفوعة: | كهربائي |
| الجهد االكهربى: | 220 فولت-240 فولت | ضمان: | 1 سنة |
| خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج | ||
| إبراز: | 250m/min PP strap band extrusion line,250m/Min pp packing strap making machine,JIATUO PP Strap Band Extrusion Line |
||

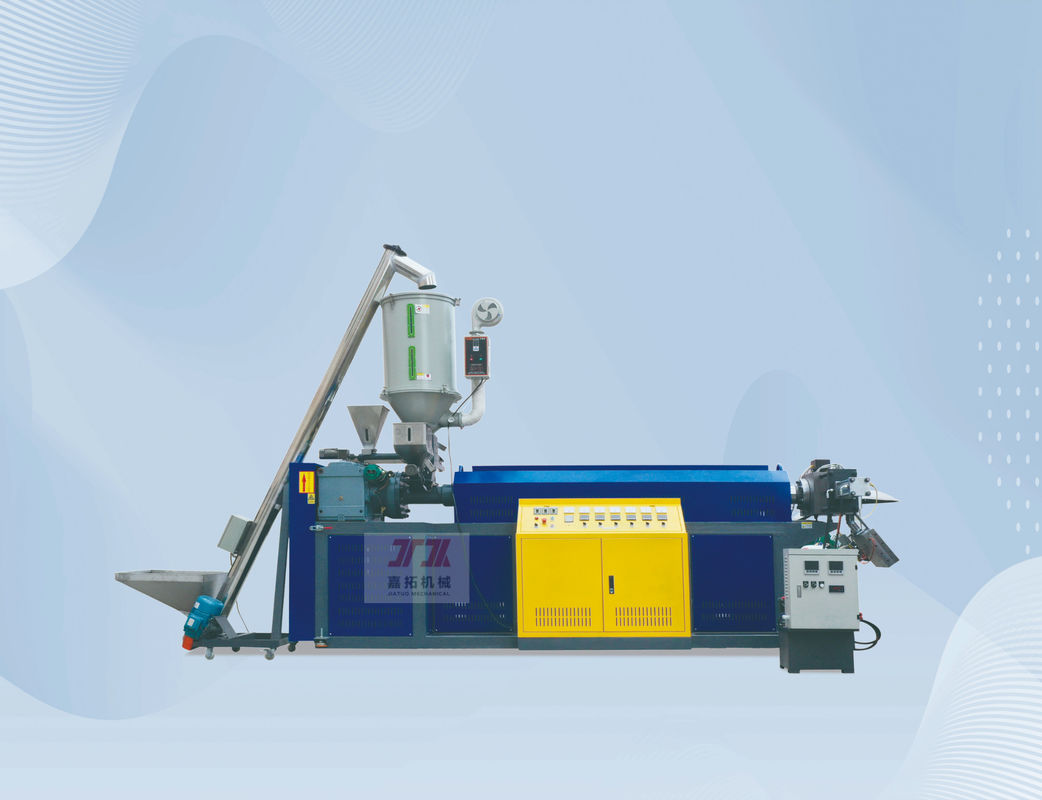

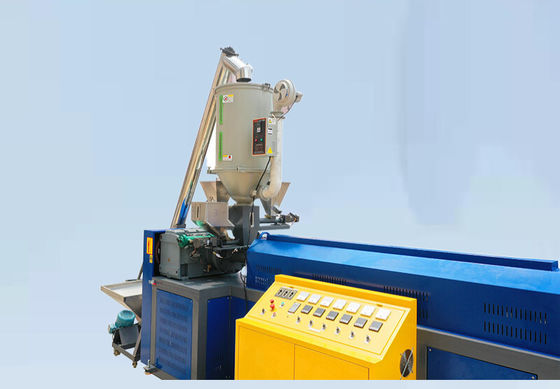

Automatic Plastic Packing Machine PP Strapping Band Making Extrusion Line
PRODUCT DESCRIPTION
JIATUO PP Strapping Band Manufacturing line produces high productivity, best quality and cost saving. The stretched and embossed PP band which will be used effectively for manual packaging or mainly in automatic strapping machine for small and middle size cartons. This newly designed machine provides faster production and superior product.
- The extruder adopts constant pitch type of screw for effective mixing of molten material.
- The die having one or more channels as the flat type.
- The stretching, annealing and cooling units adopt three units of rollers for stepless adjustment of the stretching ratio and constriction ratio.
- The embossing rollers are manufactured from nitro alloy steel material vacuum heat treated for superior hardness and maximum wear resistance.
| Machine size (L*W*H) mm | 3600*1200*4000 |
| Product arrange mode | PP One out four |
| Extrusion Capacit(kg/h) | 240 |
| Speed (m/min) | more than 250 |
| Number of Straps | 4 |
| PLC control system | PLC |
| Outgoing band width(mm) | 5-19 |
| Band Thickness(mm) | 0.4-1.2 |
| Capacity per day | 5.7 T |
![]()
APPLICATION & FEATURES
Quality features for outstanding performance:
- Maximum speed for each line 120 mt / min.
- Strapping band width 6, 9, 12, 16 and 19mm.
- All chrome plated rollers for take-off for rust free operation.
- Extruding output range 30 - 70 Kgs / Hr. in various size of machine.
- Nitro alloy barrel is nitrogen treated, precision ground and stress relieved.
- Fully automatic screen changer or manual screen changer is available optionally.
- Provide helical gear box in extruder for high efficiency and energy saving.
![]()
WHY CHOOSE US
1. We major in PP & PET Strap Production Line SINCE 2012
2. Can use 100% recycled bottle flakes material
3. The final straps can be packed automatically
4. Always have at least 3 sets of sample machine in our workshop
5. Can take customers to see the running machines
6. Can test the machine for customers
![]()
