تفاصيل المنتج:
|
| نوع المنتج: | خط إنتاج حزام التعبئة PP | تصميم المسمار: | برغي مفرد، برغي مزدوج، مفرد أو مزدوج |
|---|---|---|---|
| نوع المعالجة: | آلة البثق | مادة خام: | ص |
| طلب: | الورقة والحزام والأنابيب وشريط التغليف والشريط والحزام | الأتمتة: | تلقائي |
| نوع مدفوعة: | كهربائي | الجهد االكهربى: | 220 فولت-240 فولت |
| ضمان: | 1 سنة | خدمة ما بعد البيع المقدمة: | المهندسين المتاحة لخدمة الآلات في الخارج |
| إبراز: | PLC Plastic PP Strap Making Machine,240kg/H plastic strap making machine,240kg/H PP Box Strapping Plant |
||

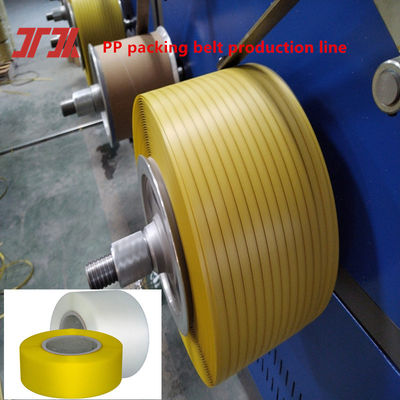

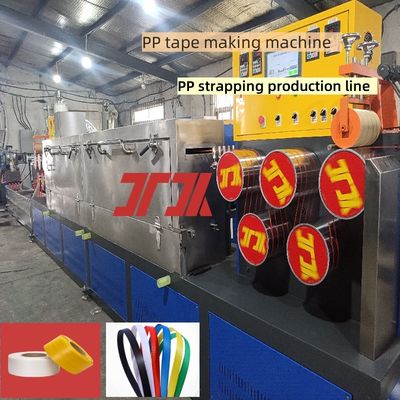

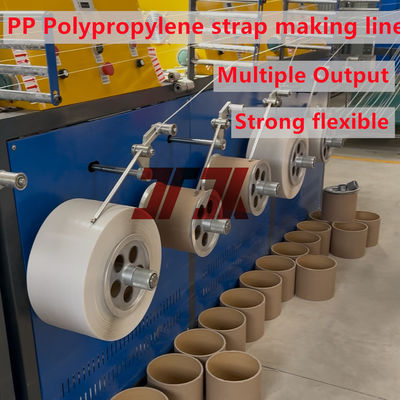

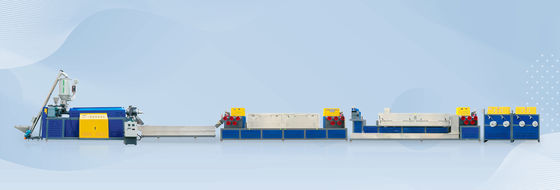

Fully Automatic Packing Machine 240kg/H Plastic PP Strap Making Machine 5-19mm Width Customized
PRODUCT DESCRIPTION
1. This packaging production line is specially designed for OPP sealing tapes.
2. It is easy to adjust the width without the help of any other tools.
3. Applicable products: combination of packages in 6pcs, 4pcs, 3pcs, 2pcs and single package.
4. It can realize unmanned operation by connecting an automatic slitting machine.
| Machine size (L*W*H) mm | 3600*1200*4000 |
| Product arrange mode | PP One out four |
| Extrusion Capacit(kg/h) | 240 |
| Speed (m/min) | more than 250 |
| Number of Straps | 4 |
| PLC control system | PLC |
| Outgoing band width(mm) | 5-19 |
| Band Thickness(mm) | 0.4-1.2 |
| Capacity per day | 5.7 T |
APPLICATION & FEATURES
1. The conveyor width can be easily adjusted without the use of any tool, which can be quickly changed to the required size.
Uniquely designed pull film part can be widely applicable to different types of shrink film.
2. Vertical sealing designed, sealing action is stable to provide excellent stability and durability.
3. It can reduce the sealing line folded to get a perfect sealing and cutting effect.
4. It can be equipped with automatic feeding system.
5. With horizontal and vertical two groups of electric eyes the machine can adapt to different thickness of the products.
6. It is easier to replace the product sizes.
7. It can use the shrink film of different brands.
8. It can be equipped with extra contact device and pack smaller products.
9. Relative to the traditional machine, vertical sealing machine has a major breakthrough that sealing path can be automatically adjusted according to the thickness of the product, greatly improving the production efficiency. The fastest speed is up to 40 packs per minute.
For packaging those higher or lower products, it can even highlight the advantages. It can bring more satisfying effect of packaging to the user.
WHY CHOOSE US
1. We major in PP & PET Strap Production Line for nearly 30years
2. Can use 100% recycled material
3. The final straps can be packed automatically
4. Always have at least 3 sets of sample machine in our workshop
5. Can take customers to see the running machines
6. Can test the machine for customers
