تفاصيل المنتج:
|
| لون الحزام: | مفرد/متعدد الألوان | سرعة الحزام: | > 250 م/دقيقة |
|---|---|---|---|
| قطر قلب الحزام: | 406*150 مللي متر/200*180 مللي متر | سمك حزام: | 0.4-1.2 ملم |
| التوتر الشريط: | قابل للتعديل | عرض حزام: | 5-19 ملم |
| مزود الطاقة: | 380 فولت/220 فولت | مرشح الصرف: | أوتوماتيكي بالكامل |
| حجم المسمار: | برغي مفرد ومزدوج | القدرة الإنتاجية: | 2.8T-12T/24 ساعة |
| إبراز: | customized PP packing belt production line,5mm PP packing belt production line |
||

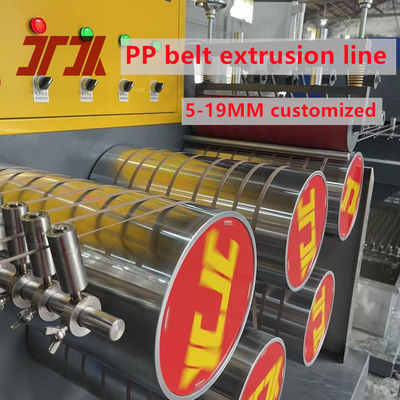

5mm customized single double screw PP packing belt production line with non-stop screen changer and length

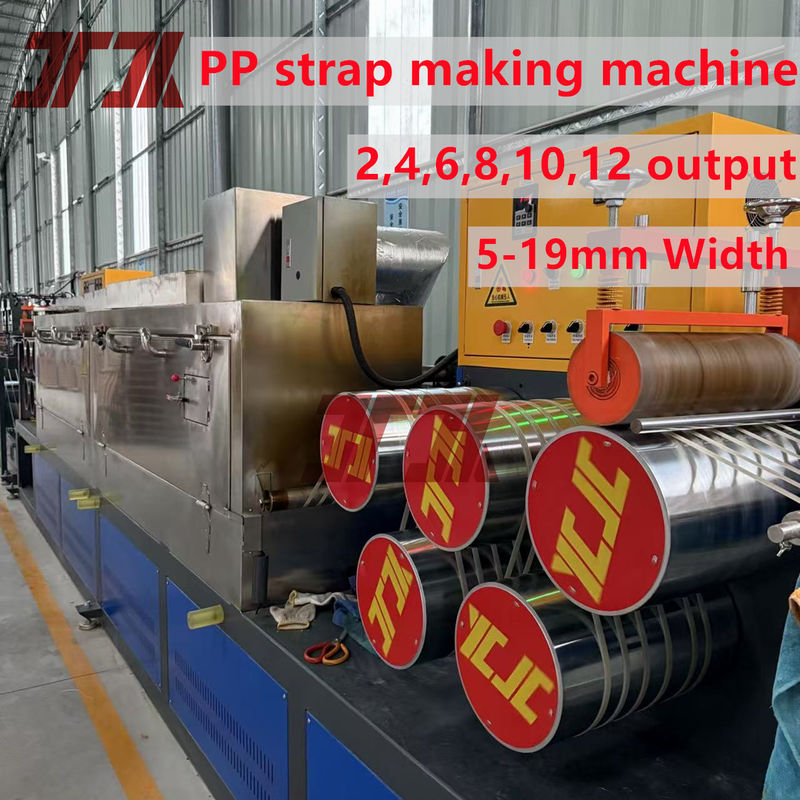

Specification of PP straps double output making machine
| Item | Product name | Detailed parameters |
| 1 | Materials | PP polypropylene new material/recycled material |
| 2 | Product | PP strap |
| 3 | Capacity | 120-150kg/h |
| 4 | Total install power | 80kw, (Operating power 50-55%) |
| 5 | Strap width | 5mm-19 mm |
| 6 | Thickness | 0.4 mm-1.2 mm |
| 7 | Manpower | 1-2person/shift |
| 8 | Workshop required | L (28m) ×W (2m) ×H (4m) |
| 9 | Power source | 380V, 50Hz, 3Phase |
| 10 | Electric components | Schneider |
| 11 | Inverter | INVT |
| 12 | Switches+Thermostat | Taiwan Fotek |
| 13 | Motor power | Gugao |
| 14 | Solid state relay | Taiwan Fotek |
| 15 | Bearing | FSB |

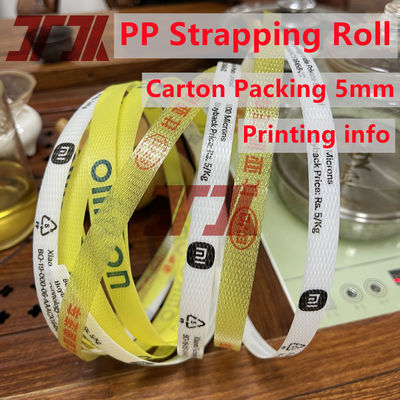

1. Mainly for making PP strapping, which is widely use in packing industry, for example: cartons, fruit, agriculture industry etc.
2.The raw material can be 100% recycled material, which can reduce the Pproduce cost and get a good profit.
3.The PP bale is the substitution of the steel strap and has a lot of advantages such as good extension, high temperature resistant, easy use.
1. The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order to made perfect effect of drying;
2. Special designed extrusion die & mould the improved screen changer realize non-stop screen changing, and without material leakage
3. Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage
Application of PP strapping

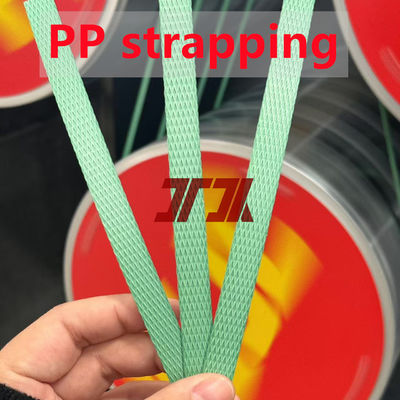

PP packing strap, also known as PP plastic belt, is a world widely used new type package material substitute for steel belt.
With years development on it and decrease on cost, it is now widely used in steel industry, chemical fiber industry, Aluminum
industry, paper industry, Brick ceramics, Screw industry, tobacco industry, electric industry, textile industry and wood industry.
It is most widely used steel belt substitute with high strength.
![]()
![]()
